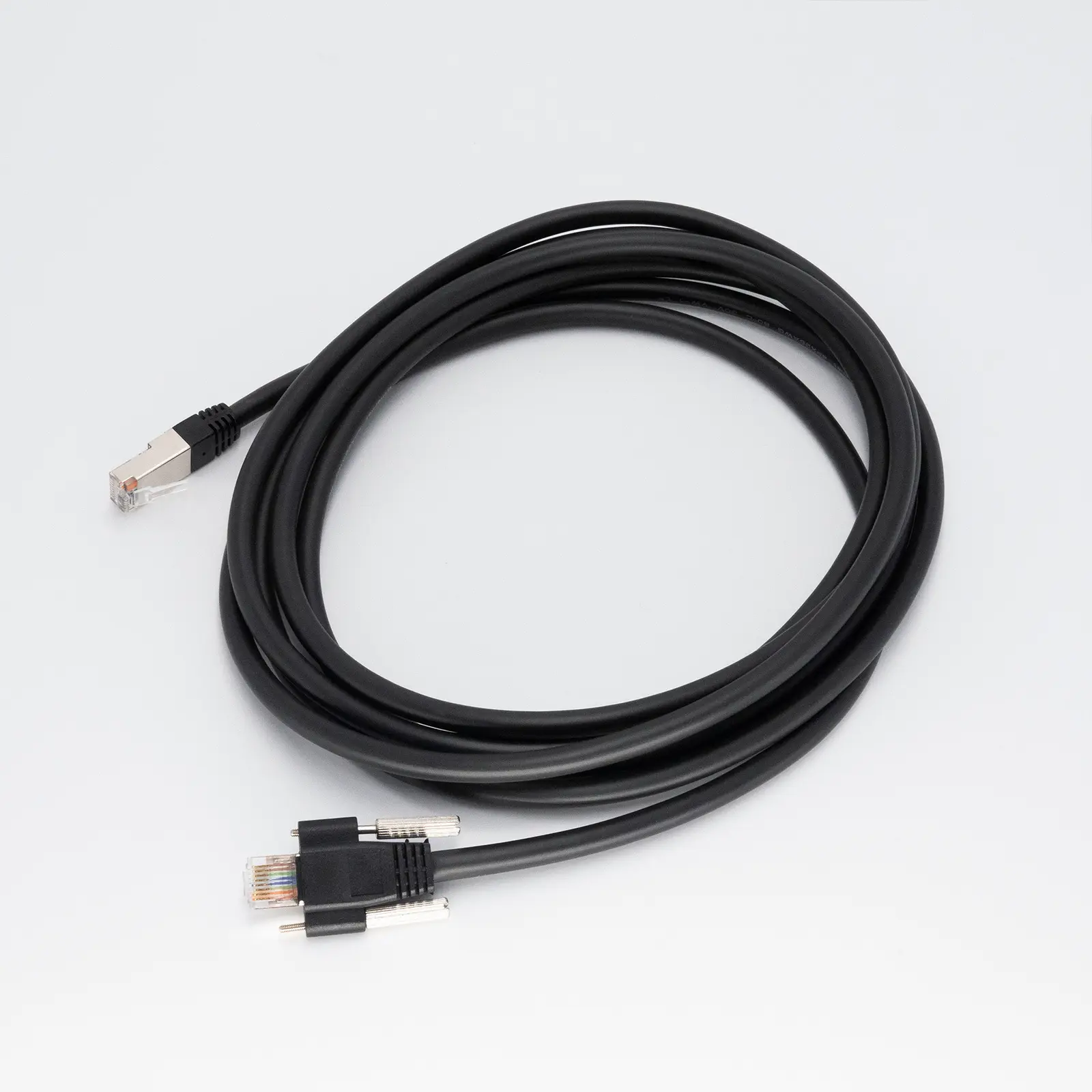

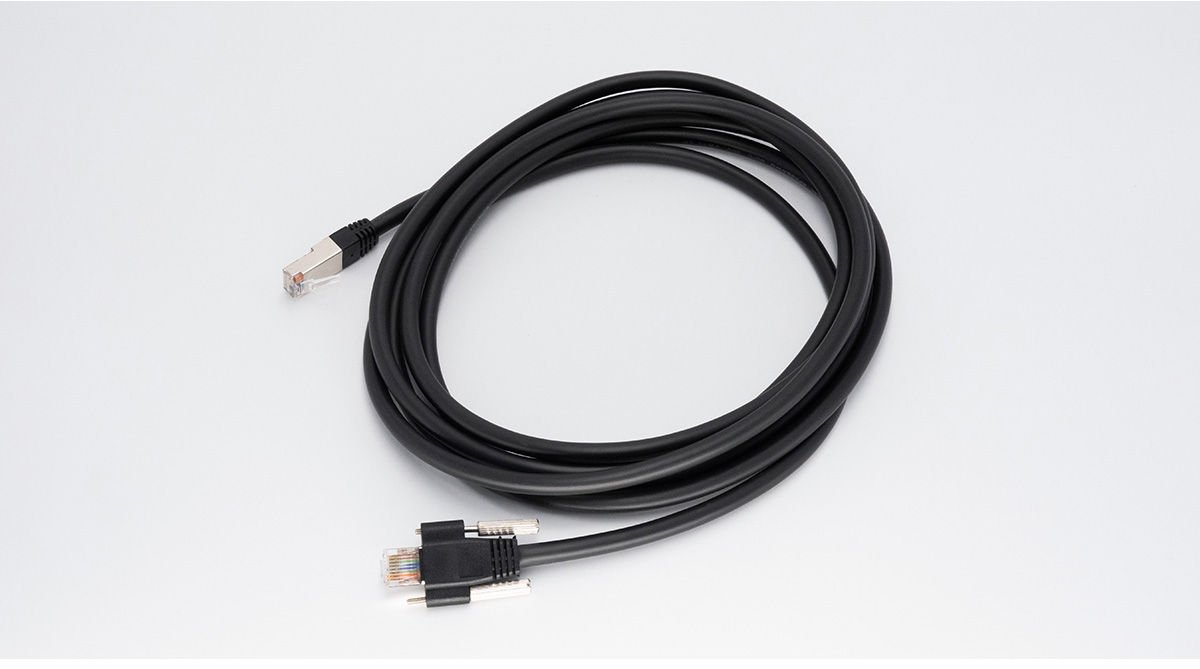

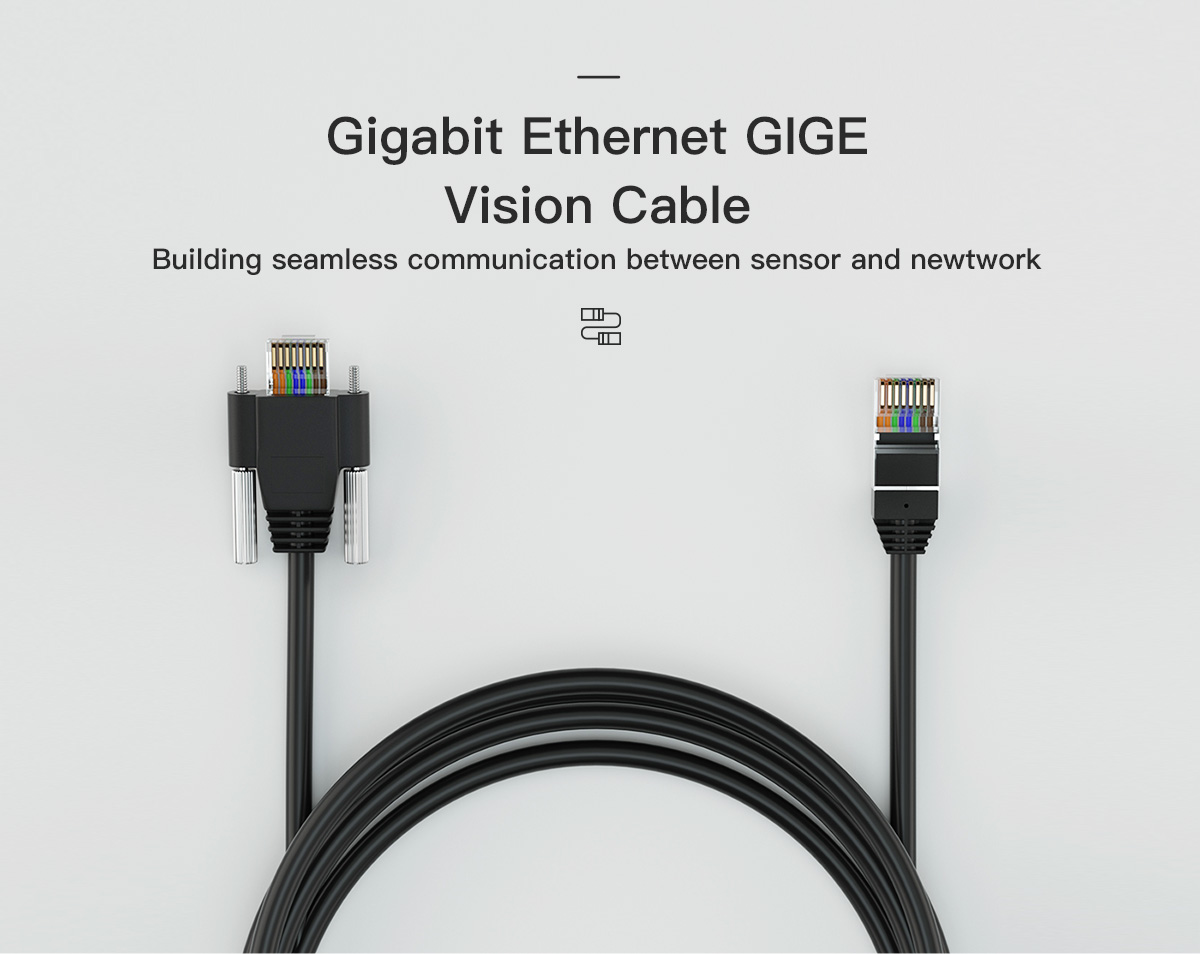

GigE Vision High-Flex Ethernet Cable with Locking Screws for Industrial Cameras

The ultimate industrial-grade Ethernet cable specifically engineered for machine vision applications where reliability is non-negotiable. Features ultra-high flexibility, secure locking screws, and superior EMI shielding for consistent performance in demanding environments.

Key Parameters

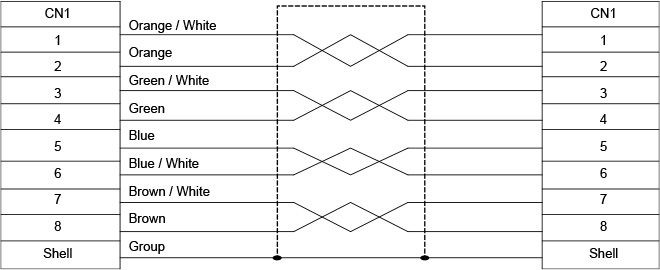

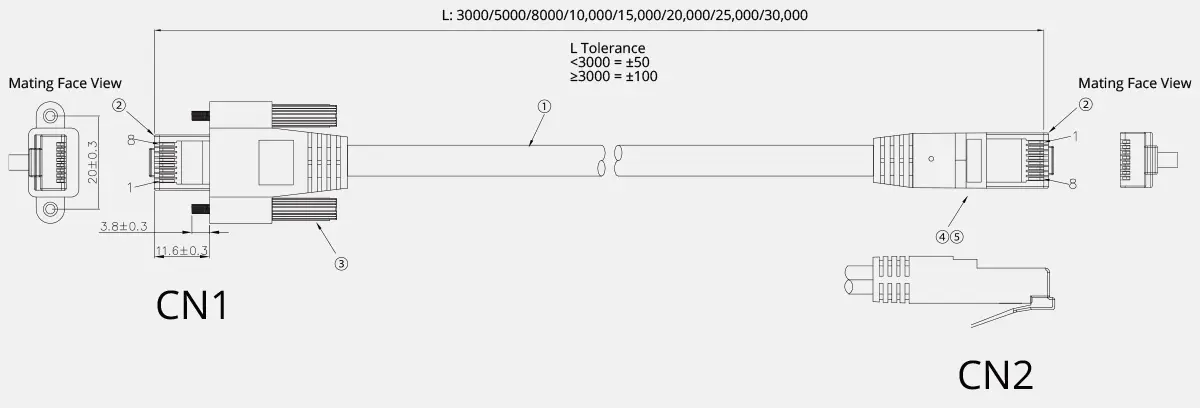

Bill Of Materials				Wiring Diagram
Item	Description	QTY	Specification
①	Wire	1	GIGE CABLE CAT5E BLACK LF 4PX26AWG
②	RJ45 Connector	2	8P8C
③	Screw Rod	2	M2.0*0.4 4.75
④	Inner Mold	1	PE(J5019)
⑤	Outer Mold	1	DWHC-10035(Black)

Drawing	Pair Twist Insulator Colour
	Pair Twist	Insulator Colour 1	Insulator Colour 2
	1	Blue	Blue / White
	2	Orange	Orange / White
	3	Green	Green / White
	4	Brown	Brown / White
	Blue / White: White line is injected on the blue insulator and occupys 20-25% of the dimension. The same for others.

Model NO.	OLA-GIGE-7-1-3-XM CABLE		Printing	Ethernet, 4PX26AWG, 80°C, 30V, VW-1, LF
Style	GIGE Ethernet/T/20276-SB BLACK LF 4PX26AWG		Size	4PX26AWG
Approbation	UL20276 AWM 80°C 30V		Flame Retardant Grade	VW-1

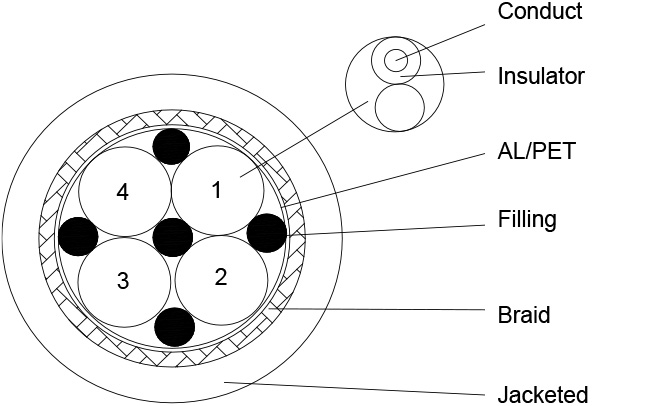

Conductor	Size	26AWG/4P	Shielded	Al/Pet	0.05*20mm
	Cond. Material	Bare Copper BC		Braid	24/8/0.1TC
	Construction	30/0.08 BC		Covered	99% Min
	Diameter	0.51mm	Jacketed	Material	PVC
	Tolern	±0.003mm		Avg.Thick.	0.765mm
Insulation	Material	HDPE		Min.Thick.	0.723mm
	Avg.Thick.	0.207mm		Diameter	ø6.5±0.2mm
	Min.Thick.	0.184mm		Colour	Black (Similar to RAL 9005)
	Diameter	0.97±0.05mm	Electrical Properties	Conductor Resistance	≤124 Ω/km 20°C
	Colour	(Bule*Bule/White)		Test Voltage	500V/1min
		(Orange*Orange/White)		Insulating Resistance	> 10 MΩ/km 20°C
		(Green*Green/White)		Characteristic Impedance	100±15Ω
		(Brown*Brown/White)	Wokring Tempearture	Fixed Installation	-20°C ~ 80°C
Pair Twist	Pair Twist	1P*26AWG		Moved Installation	-5°C ~ 50°C
	Diameter	1.94mm	Minimal Bending Radius	Fixed Installation	5 X Cable-ø
Assembly Standed	26AWG/4P			Moved Installation	8.5 X Cable-ø
Quality Certifications

Industrial-Grade Construction for Maximum Durability

This isn’t an ordinary Ethernet cable. Specifically engineered for industrial vision applications, every component is designed for reliability in demanding environments:

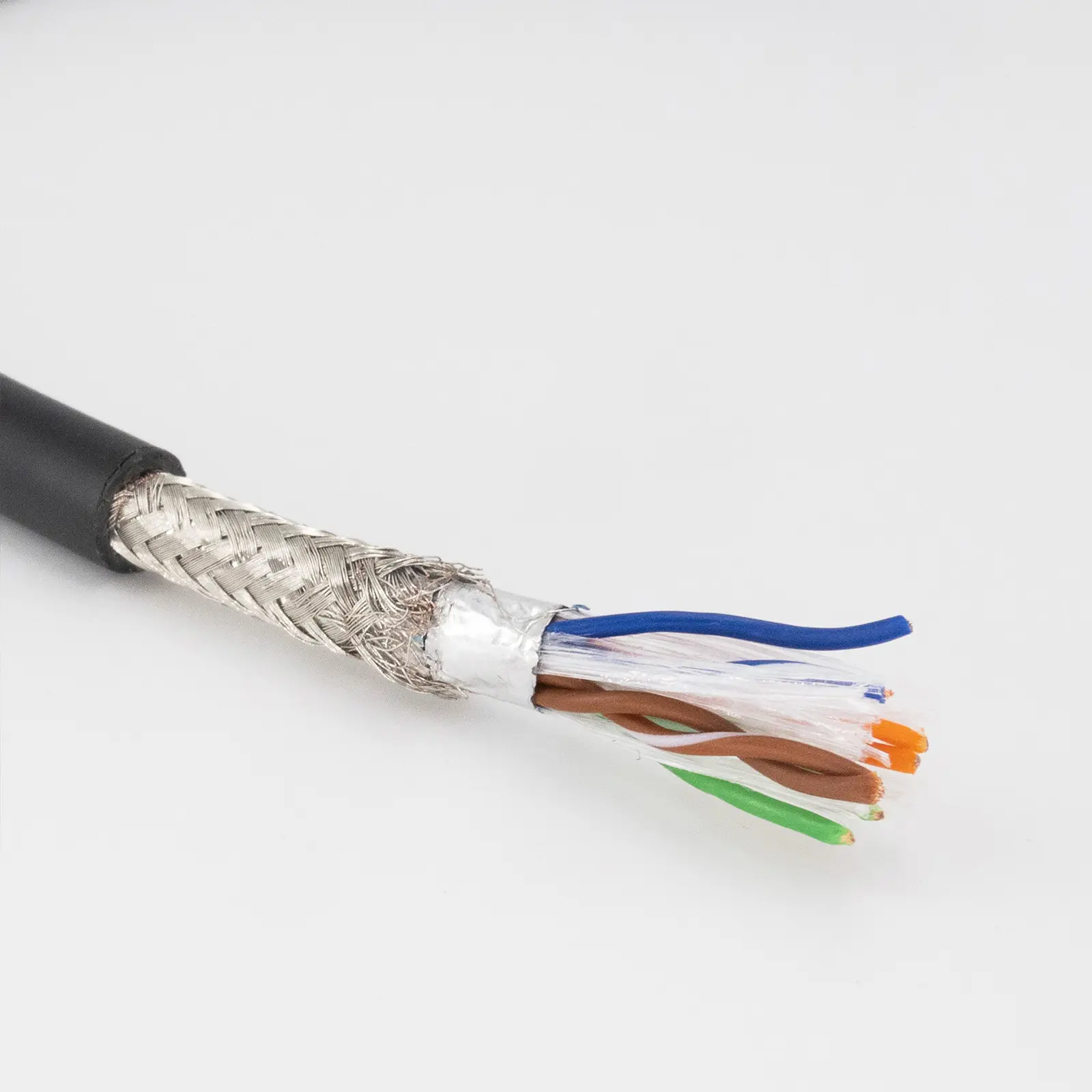

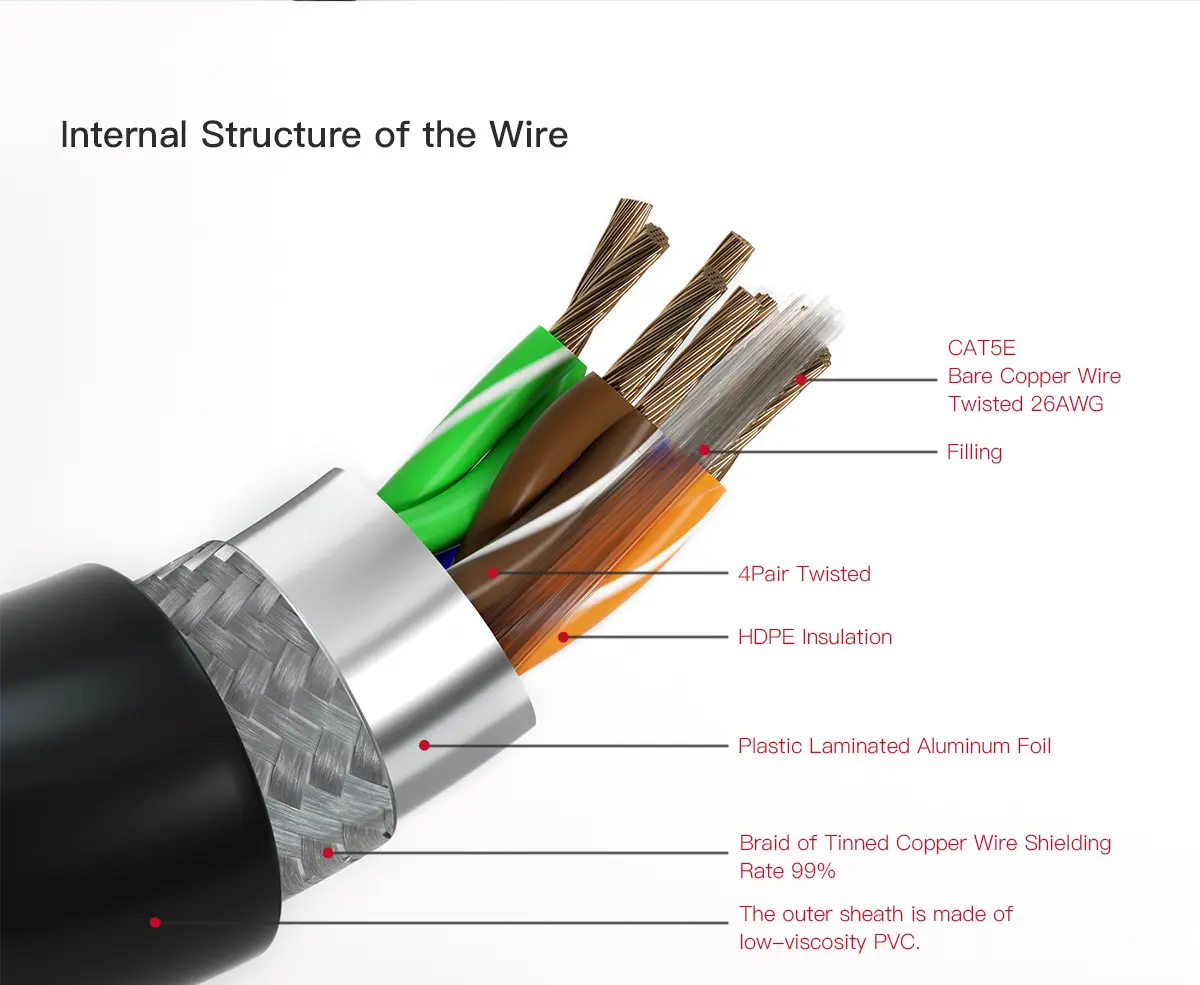

• Premium Internal Structure: Features 26AWG twisted copper conductors with HDPE insulation for superior signal integrity

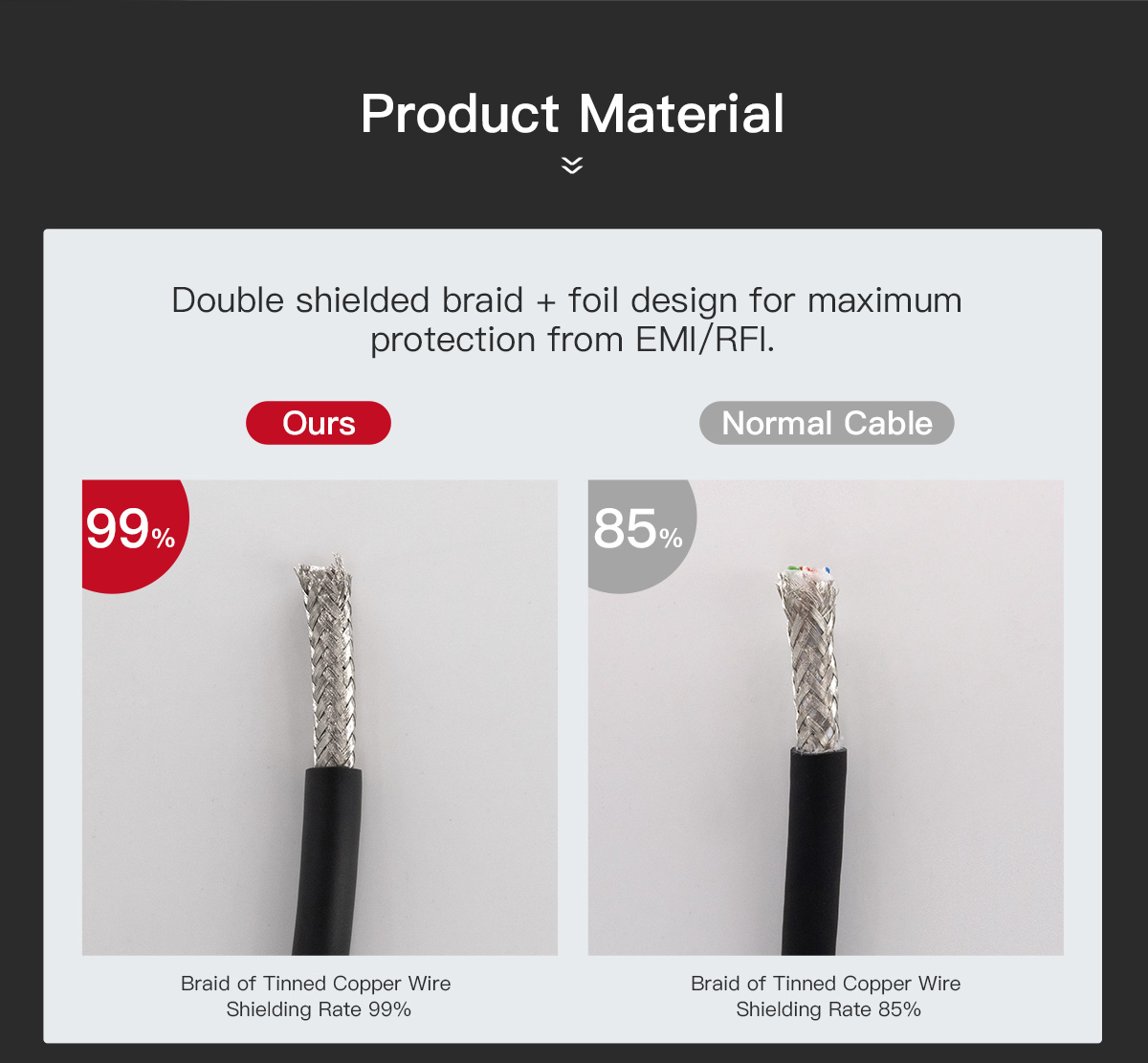

• 99% EMI/RFI Shielding: Double-layer protection with braided tinned copper and aluminum foil shields outperforms standard cables (85% coverage)
• PVC Outer Jacket: Protects against oils, chemicals, and physical wear in industrial settings

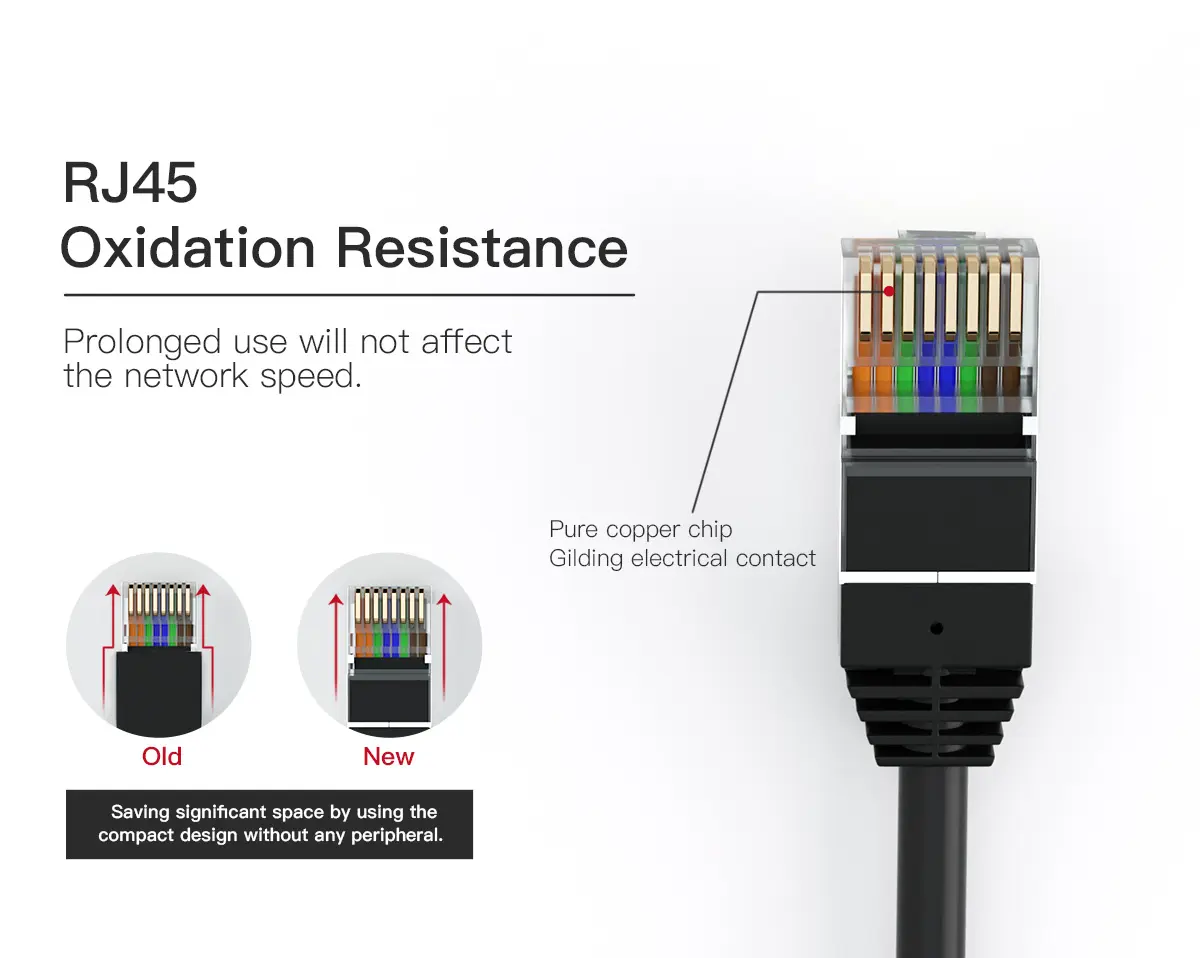

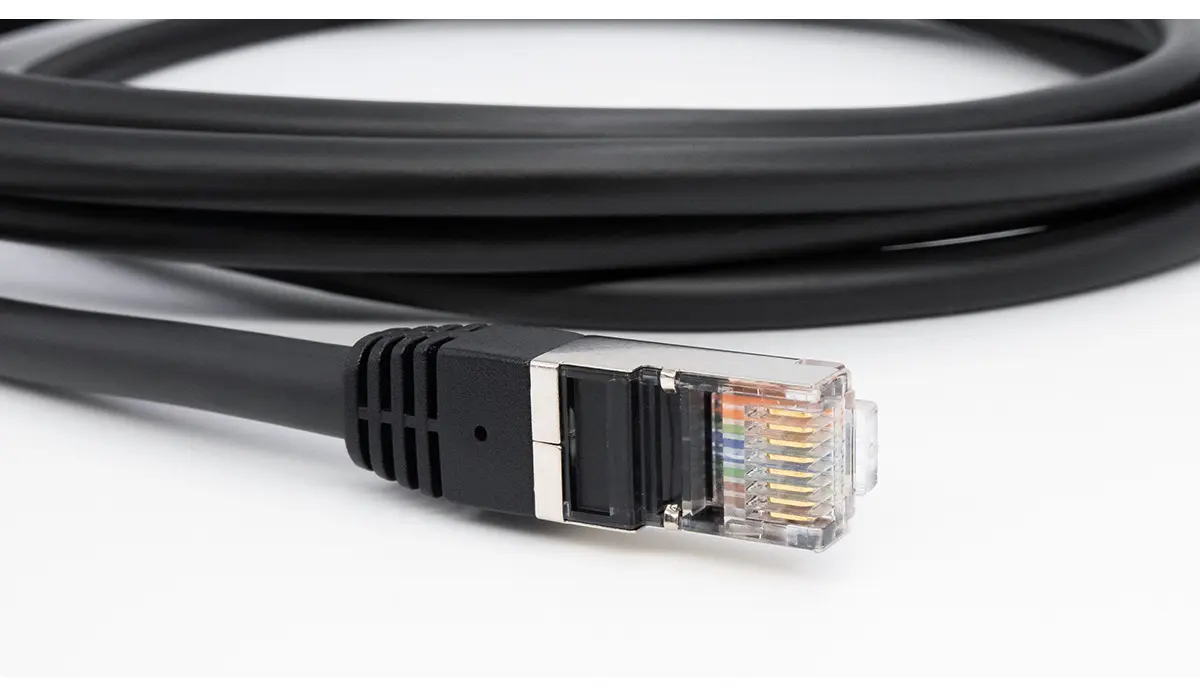

• Oxidation-Resistant Contacts: Pure copper with gold plating ensures reliable connections without signal degradation over time

Exceptional Flexibility for Moving Applications

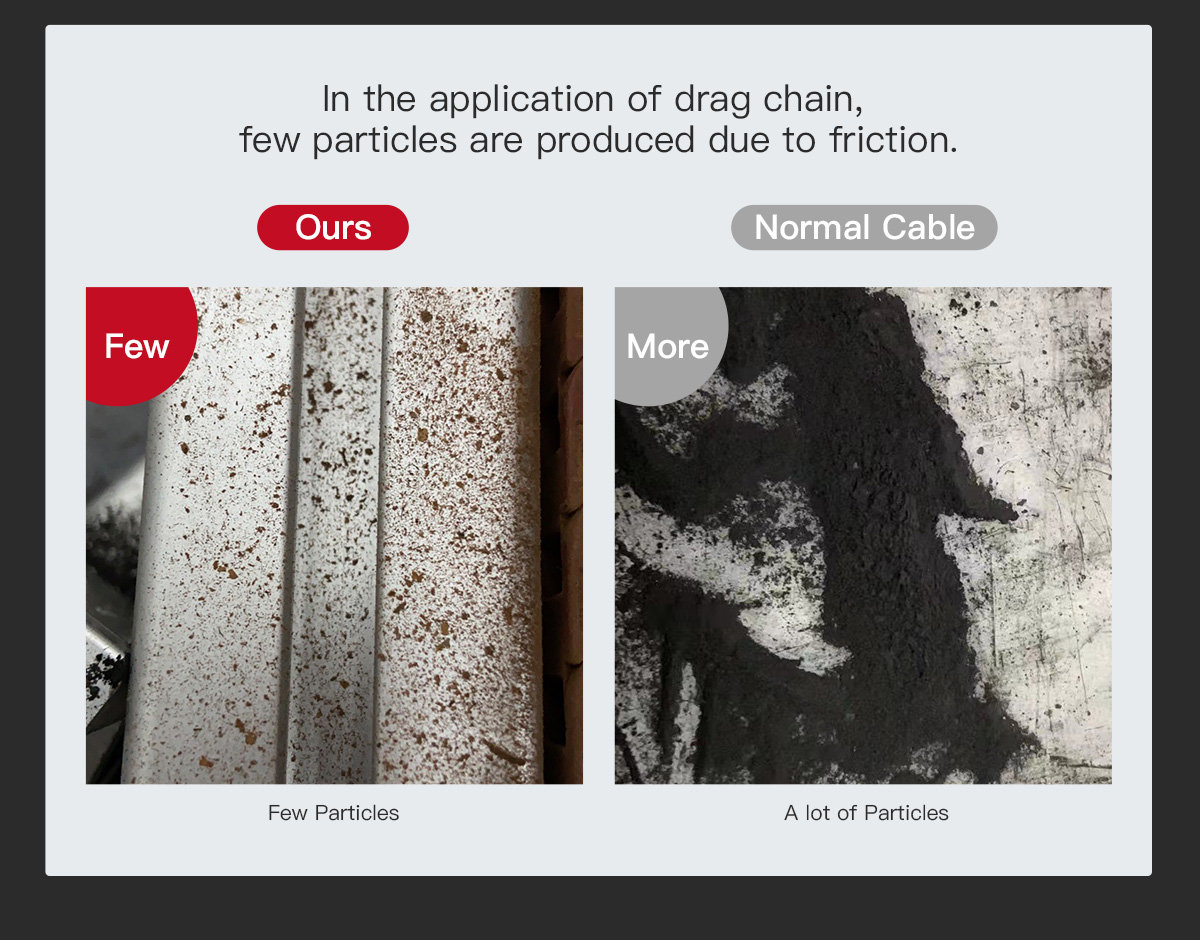

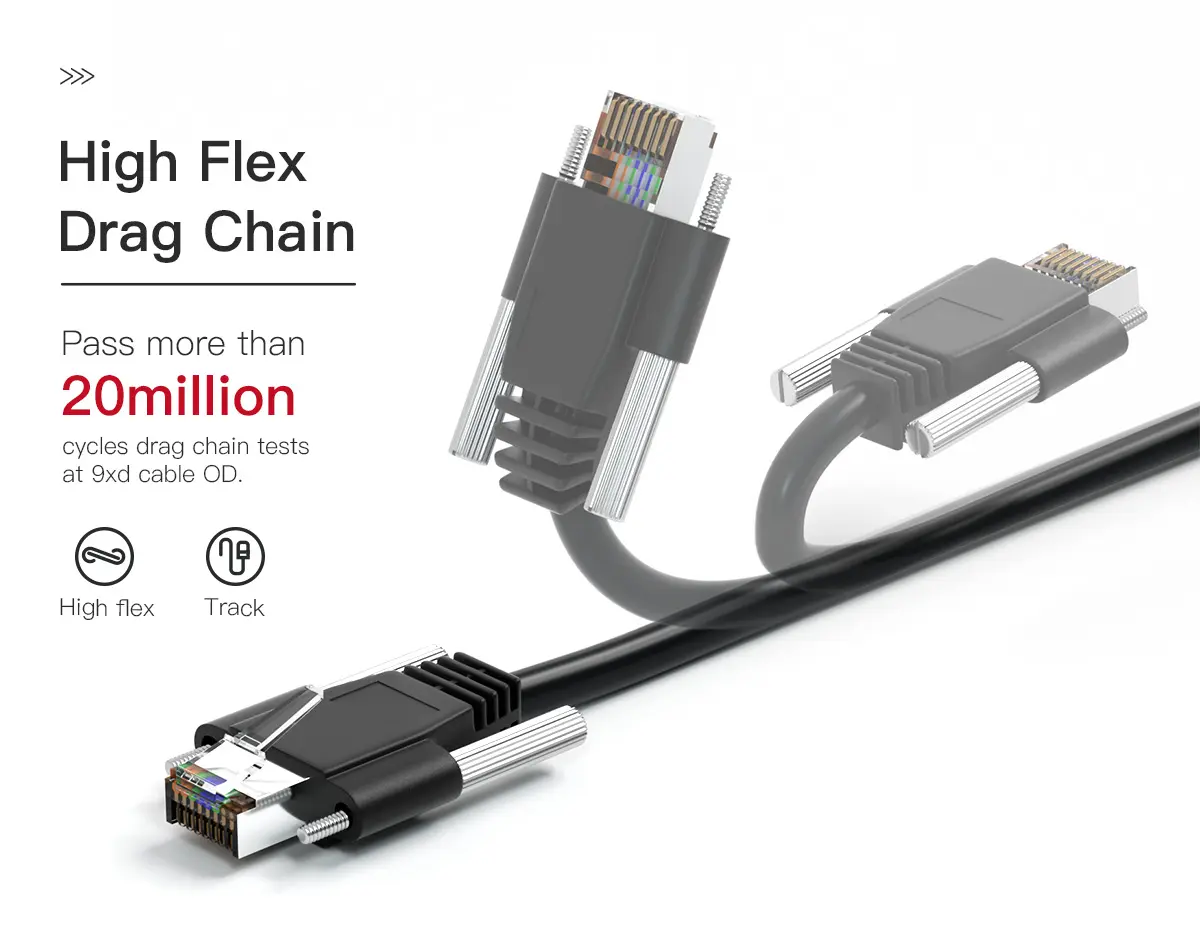

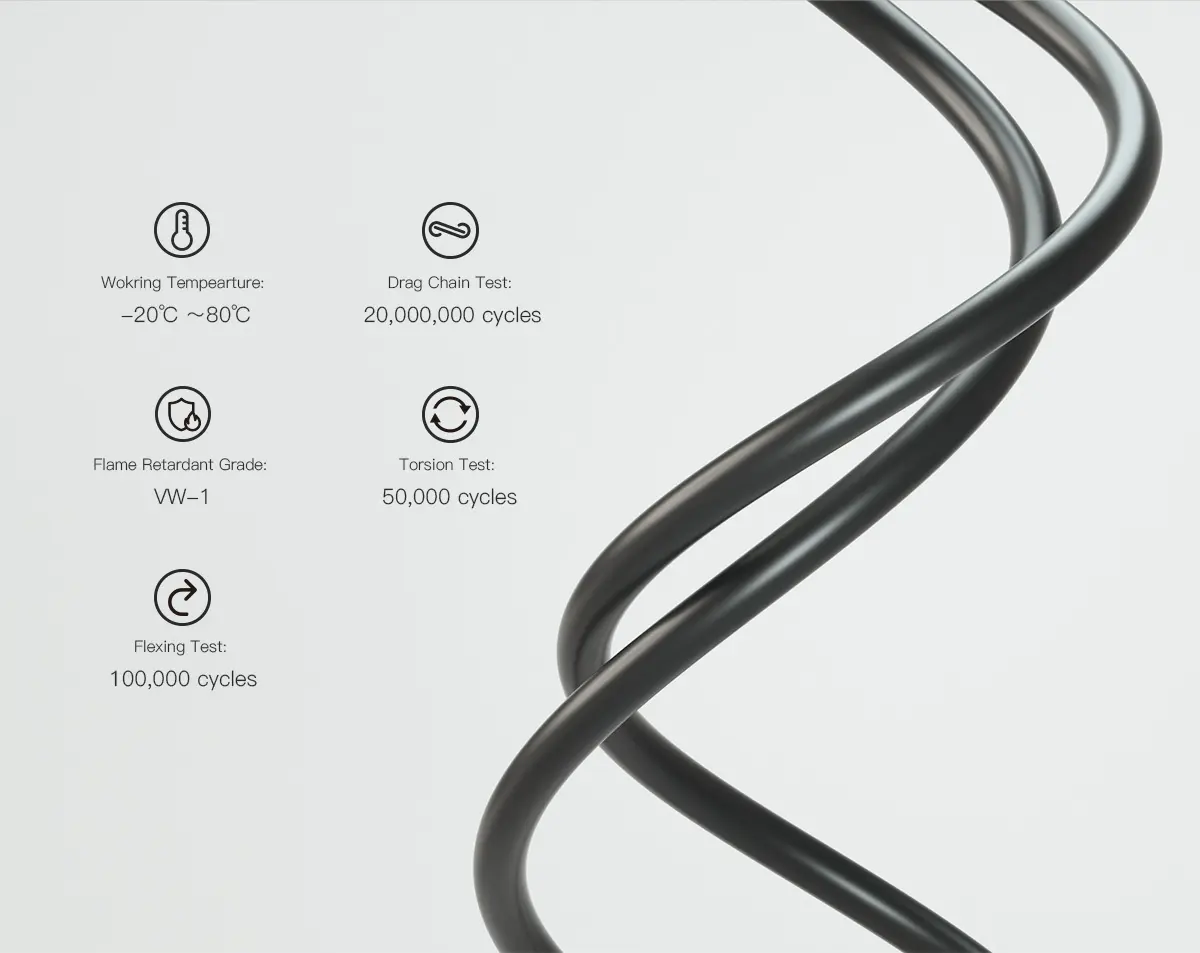

Tested to withstand over 20 million drag chain cycles without failure, this cable is ideal for robots, moving gantries, and other applications requiring constant flexing:

• 100,000+ Flexing Cycles: Maintains signal integrity through repeated bending
• 50,000+ Torsion Cycles: Resists twisting forces without internal damage
• 8X Cable Diameter Minimum Bend Radius: Perfect for tight installation spaces

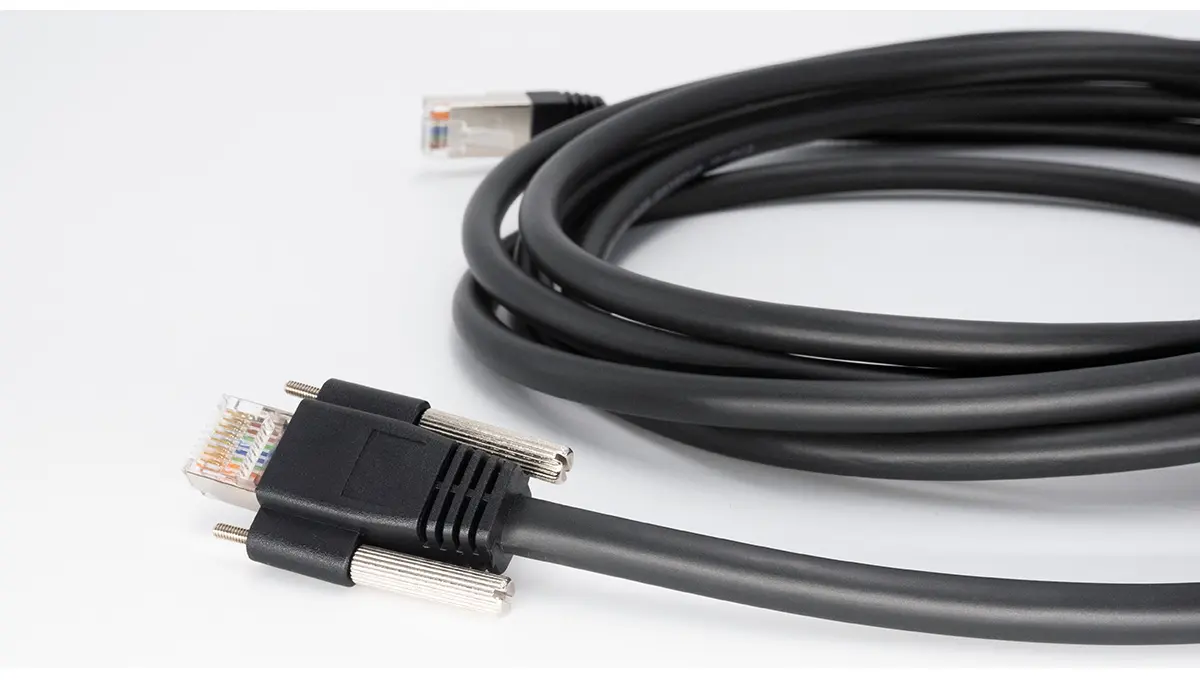

Secure Connection System

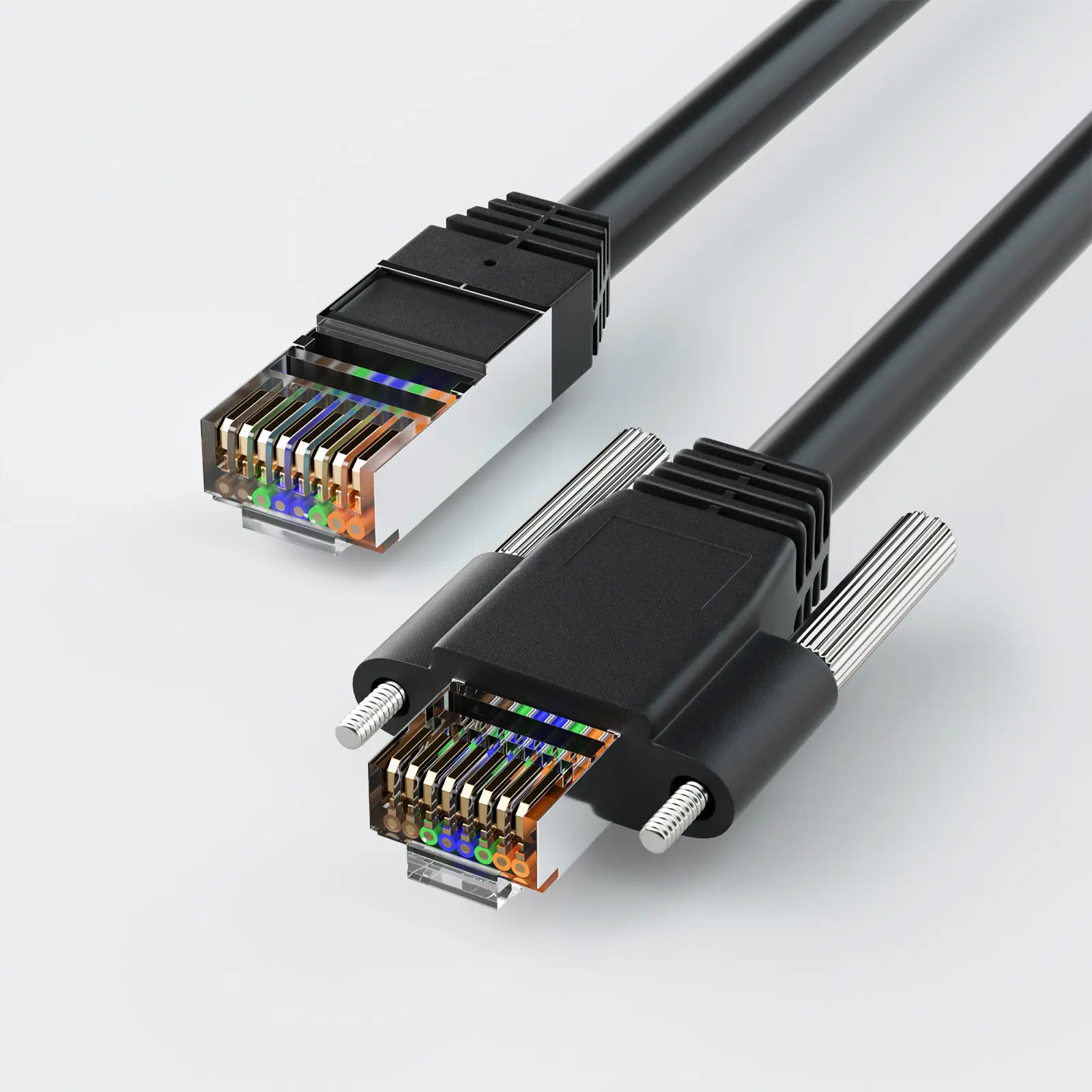

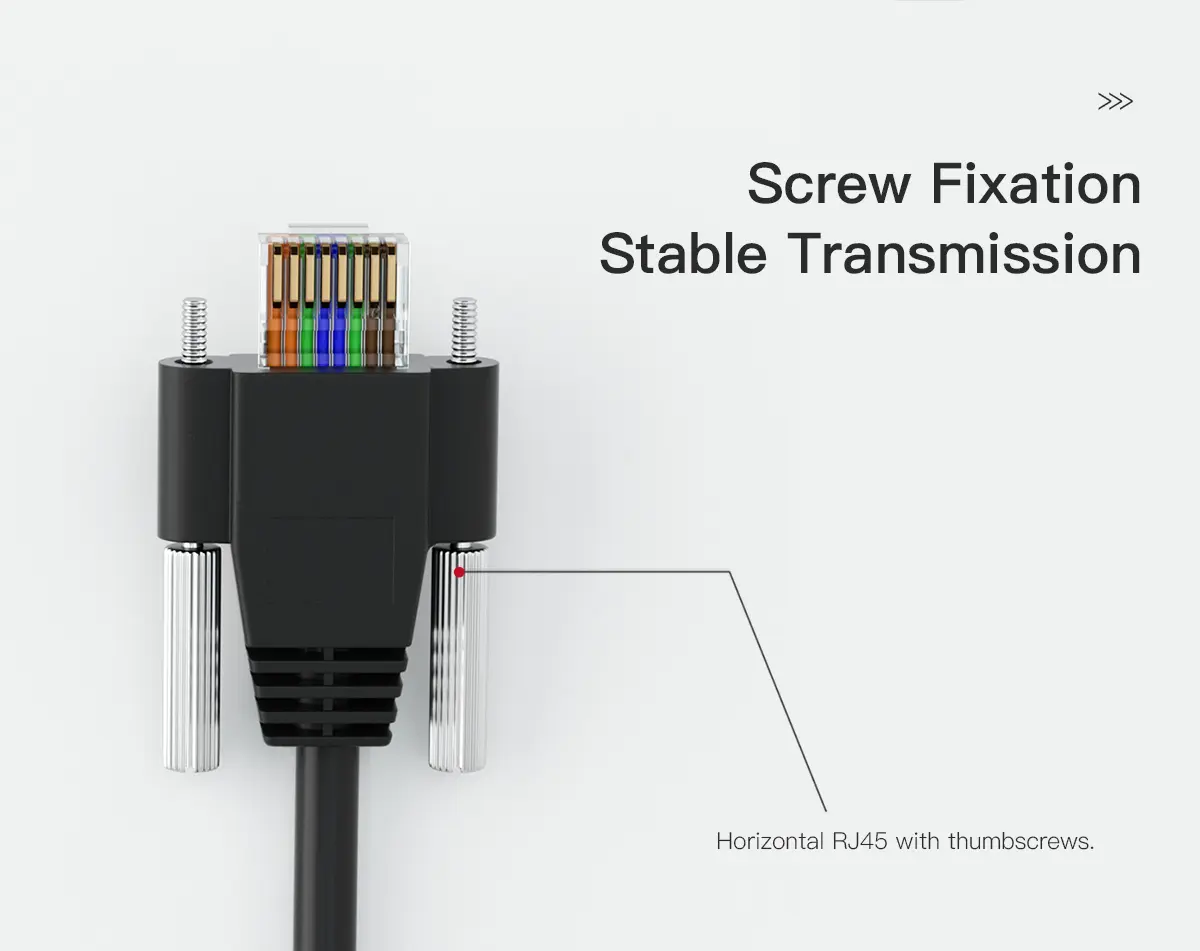

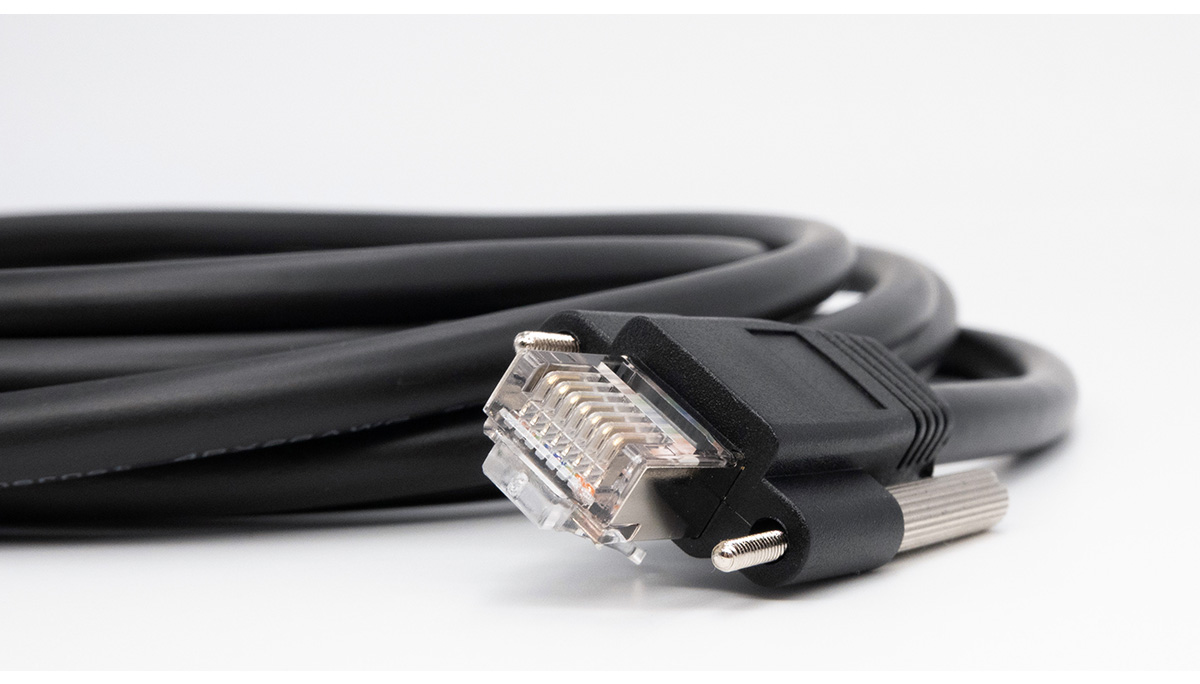

The horizontal RJ45 connectors with thumbscrews provide a critical advantage for industrial vision systems:

• Vibration-Proof Connection: Eliminates disconnections due to machine vibration
• Quick Installation/Removal: No tools required for secure attachment
• Space-Saving Design: Compact connector profile without unnecessary peripherals

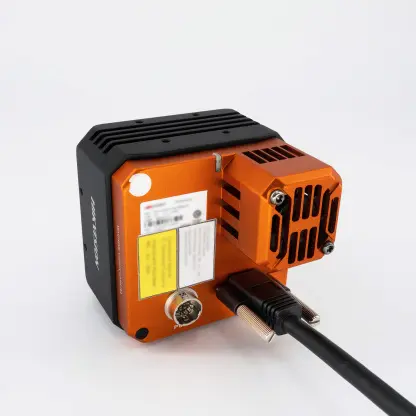

Universal Camera Compatibility

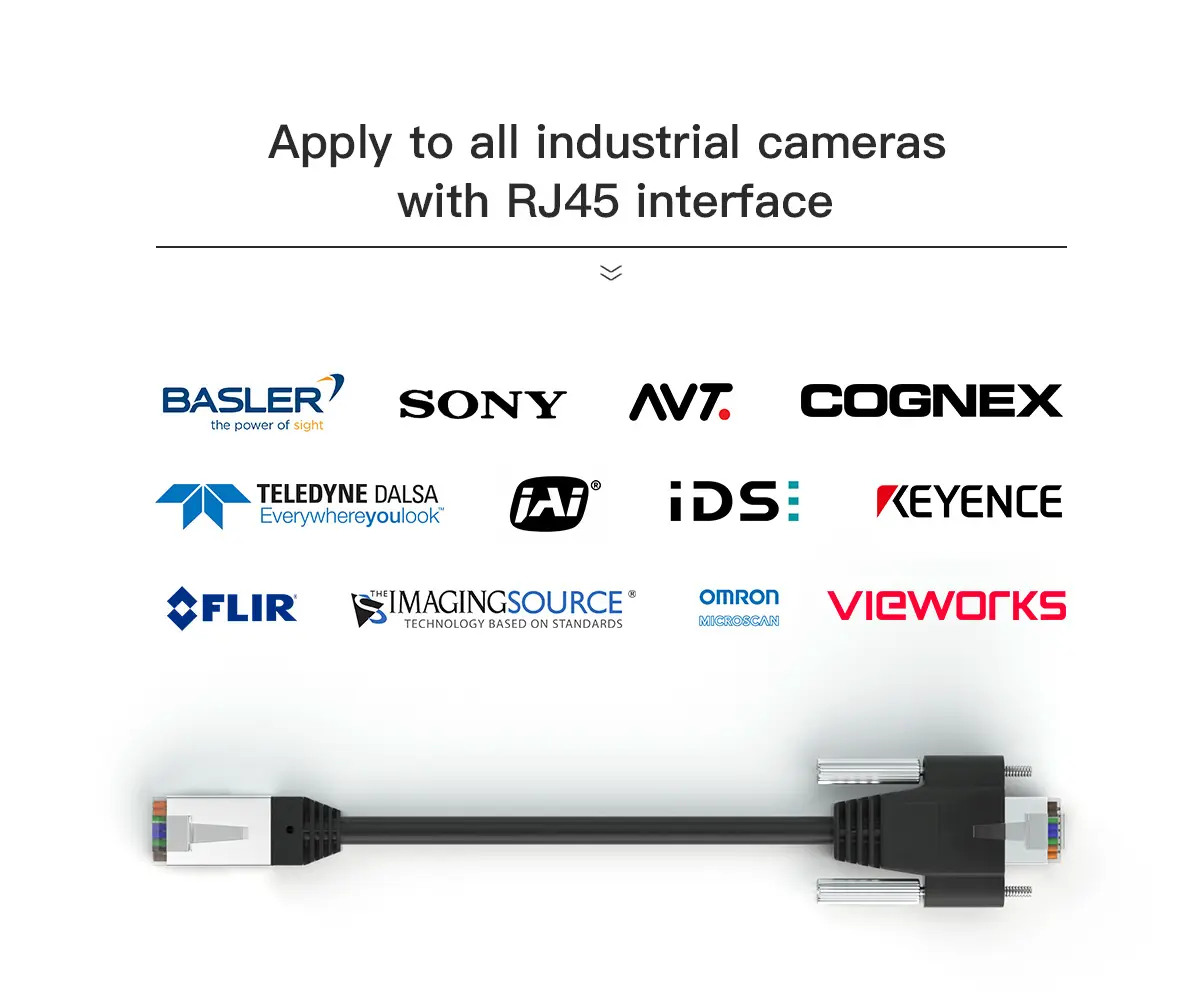

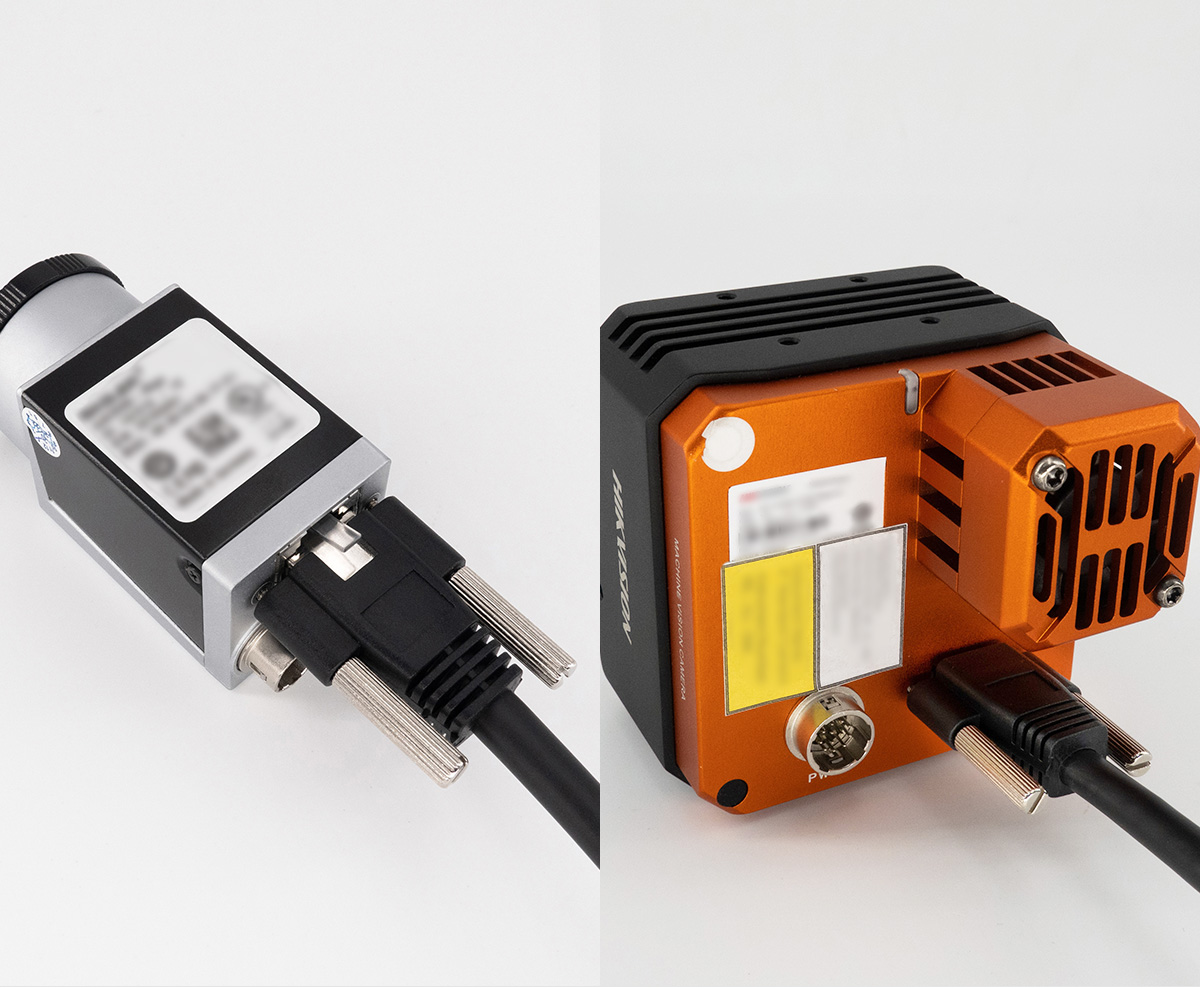

Works seamlessly with all major industrial camera brands featuring RJ45 interfaces:

• Basler
• Sony
• Allied Vision (AVT)
• Cognex
• Teledyne DALSA
• JAI
• IDS
• KEYENCE
• FLIR
• The Imaging Source
• Omron
• Viewworks

Superior Signal Performance

The meticulously engineered internal structure ensures consistent data transmission for your mission-critical imaging applications:

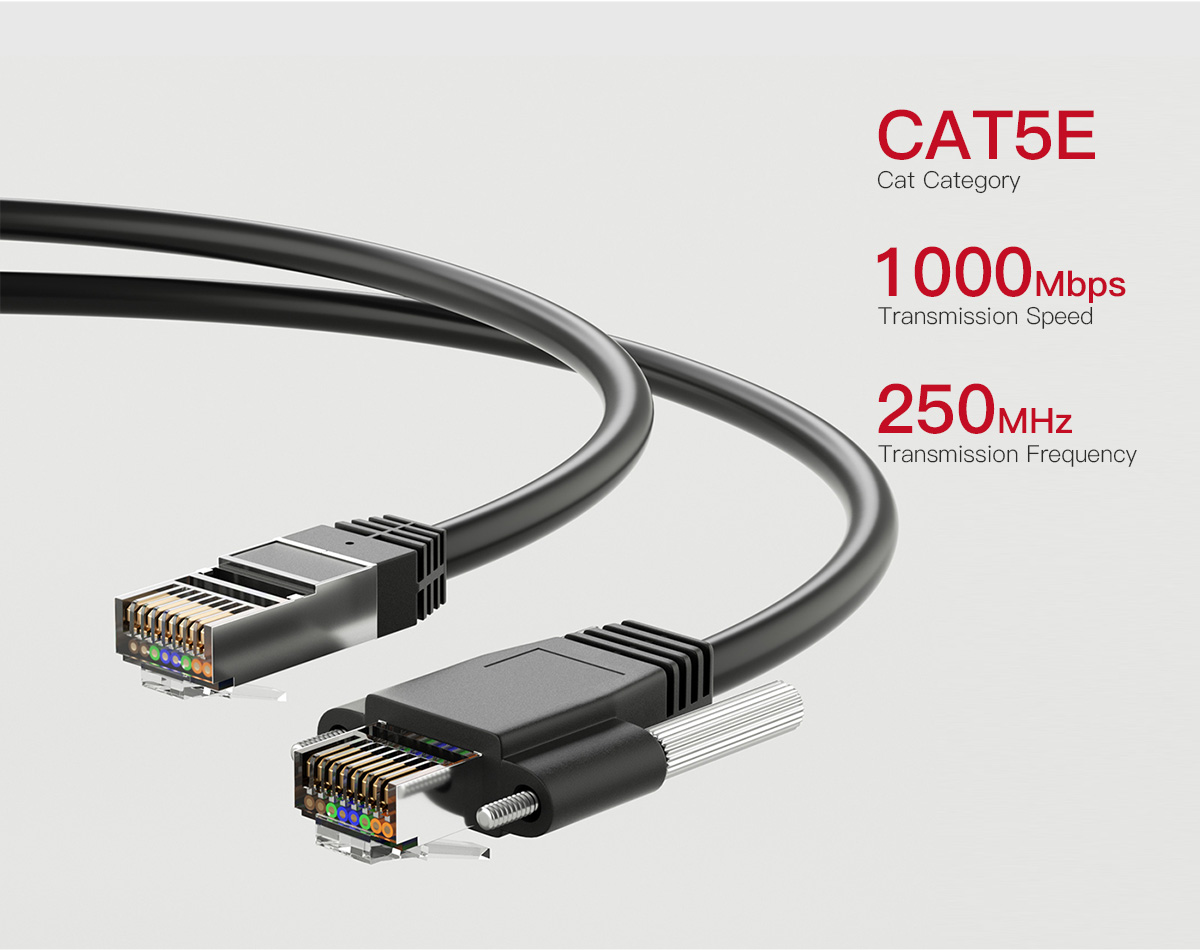

• Cat5E Performance: Supports full GigE Vision bandwidth requirements
• Color-Coded Conductors: Enables easy troubleshooting and custom termination
• Reduced EMI Susceptibility: Minimizes interference from nearby machinery
