Purpose-built cable for industrial vision systems that connects cameras to control systems with a durable design that withstands repeated bending and flexing in production environments.

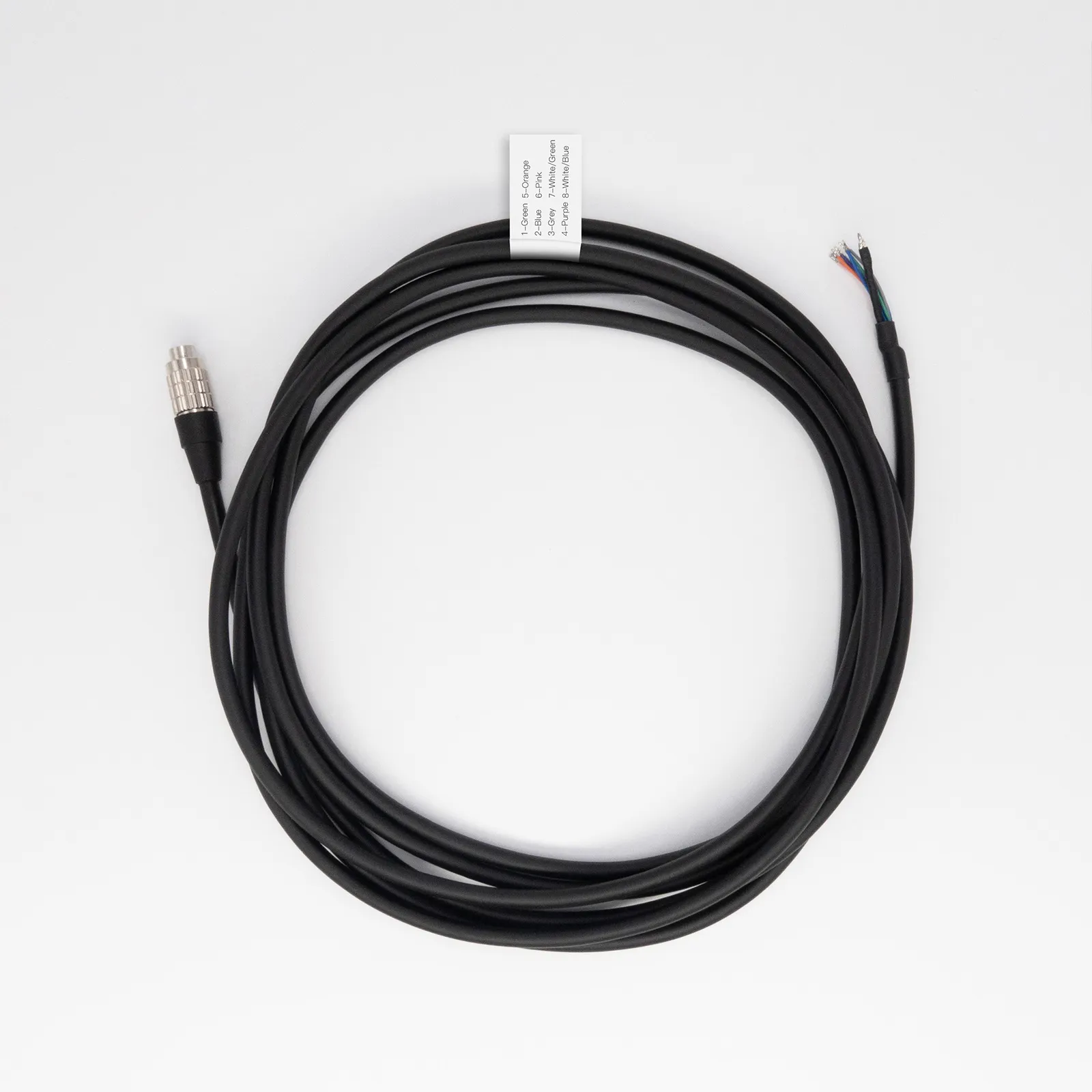

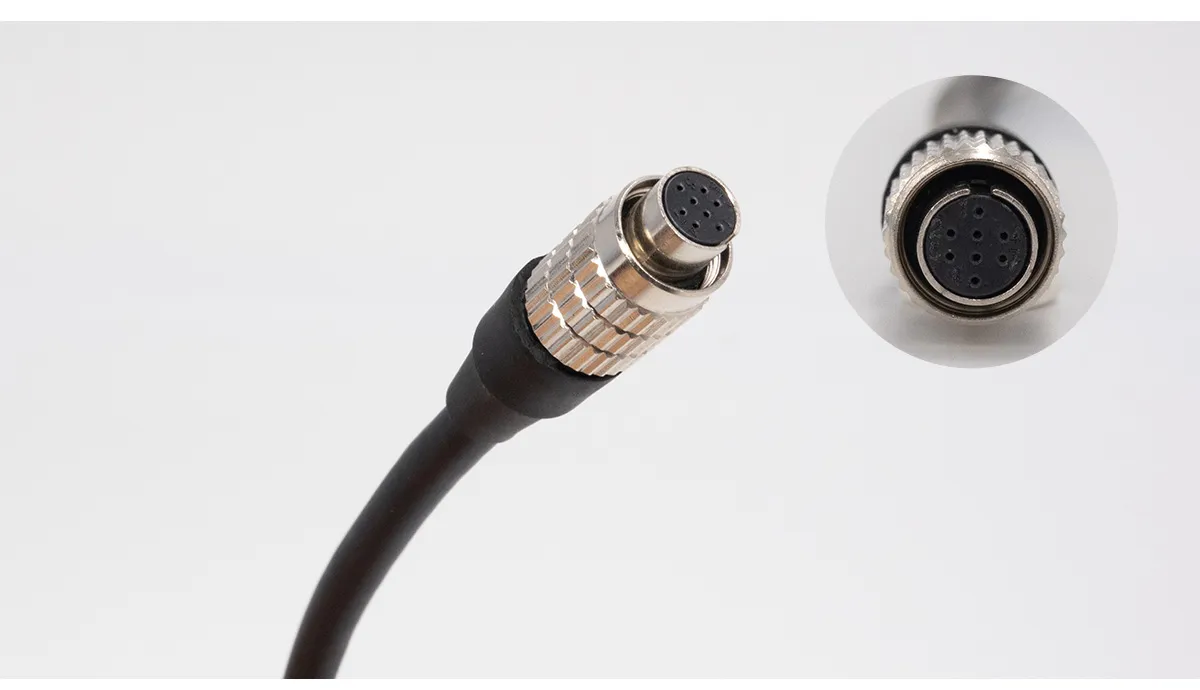

The professional solution for connecting and powering industrial vision cameras in dynamic environments. This high-flex cable features an 8-pin Hirose female connector to open wire ends, giving you the flexibility to create custom connections while ensuring reliable performance in demanding applications.
| Feature | Specification |
|---|---|
| Connector Type | 8-Pin Hirose HR25-7TP-8S Female to Open Ends |
| Wire Construction | 8CX28AWG RoHS LF BLACK – Each wire color-coded |
| Shielding | EMI Protected with 16/7/0.1TC Braided Shield (85% Coverage) |
| Bend Radius | 8X Cable-ø (In Motion) / 4X Cable-ø (Fixed) |
| Temperature Range | -10°C ~ 50°C (Moving) / -20°C ~ 80°C (Fixed) |
| Available Lengths | 3m / 5m / 8m / 10m |
| Flame Retardant | VW-1 Rated |
| Model NO. | VLH-ANA-1-X-3M CABLE | ||||
| Style | 8CX28AWG RoHS LF BLACK | Size | 8X28AWG | ||
| Approbation | NOUL | Flame Retardant Grade | VW-1 | ||
| Conductor | Size | 28AWG/8C | Shielded | Foil | 0.05*20mm |
| Cond. Material | Bare Copper BC | Braid | 16/7/0.1TC | ||
| Construction | 41/0.08 BC | 30/0.08 BC | ACovered | ||
| Diameter | 0.4mm | Jacketed |
Material | PVC | |
| Tolern | ±0.003mm | Diameter | ø5.0±0.3mm | ||
| Insulation | Material | PVC | Colour | Black (Similar to RAL 9005) | |
| Diameter | 0.8±0.05mm | Wokring Tempearture | Fixed Installation | -20°C ~ 80°C | |
| Colour | Green, Blue, | Moved Installation | -10°C ~ 50°C | ||
| Grey, Purple, | Minimal Bending Radius | Fixed Installation | 4 X Cable-ø | ||
| Orange, Pink, | Moved Installation | 8 X Cable-ø | |||
| White/Green, White/Blue | Electrical Properties | Fixed Installation | ≤87.6 Ω/km 20°C | ||
| Assembly Standed | 8CX28AWG | Test Voltage | 500V/1min | ||
| Quality Certifications |    |
||||

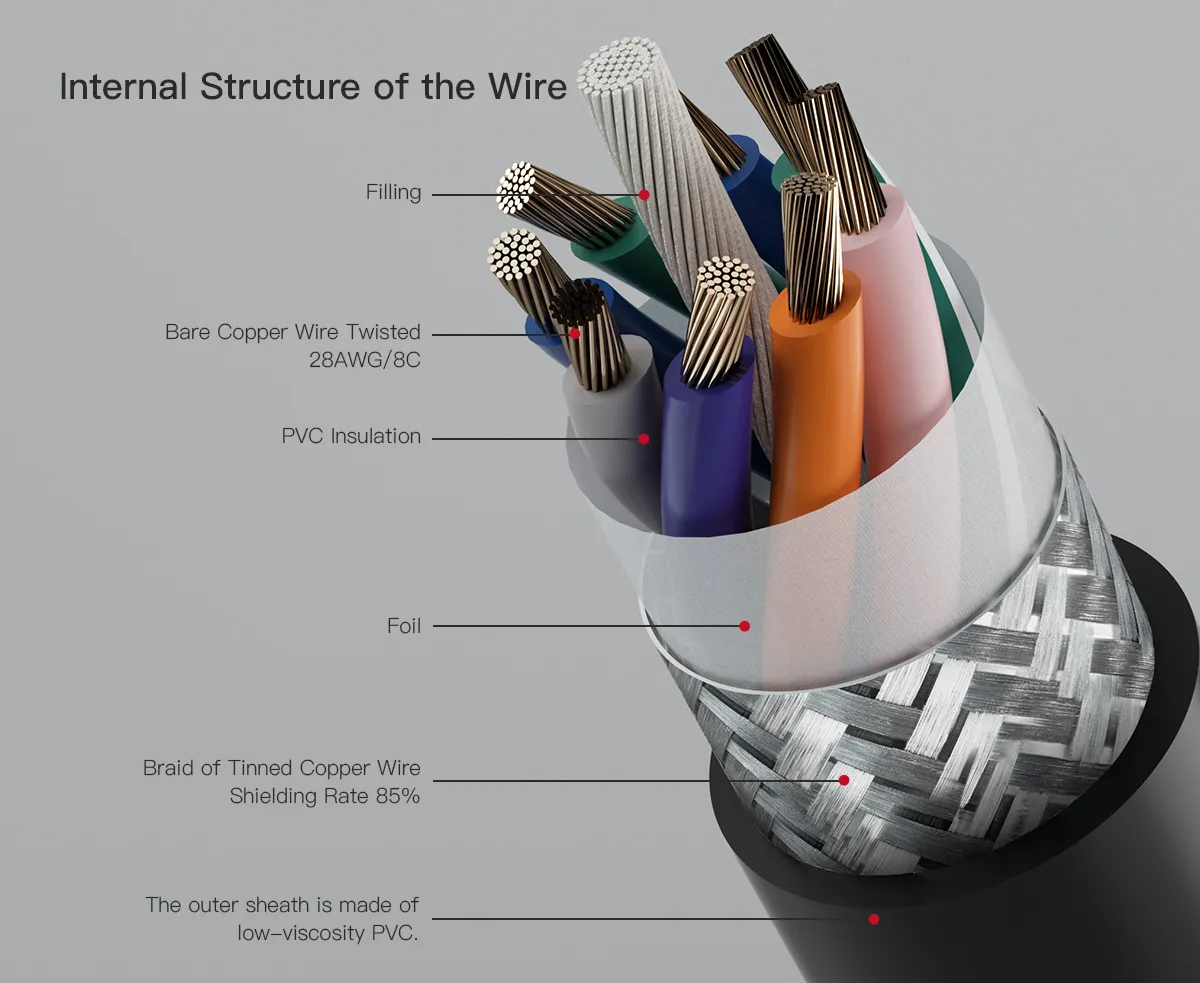

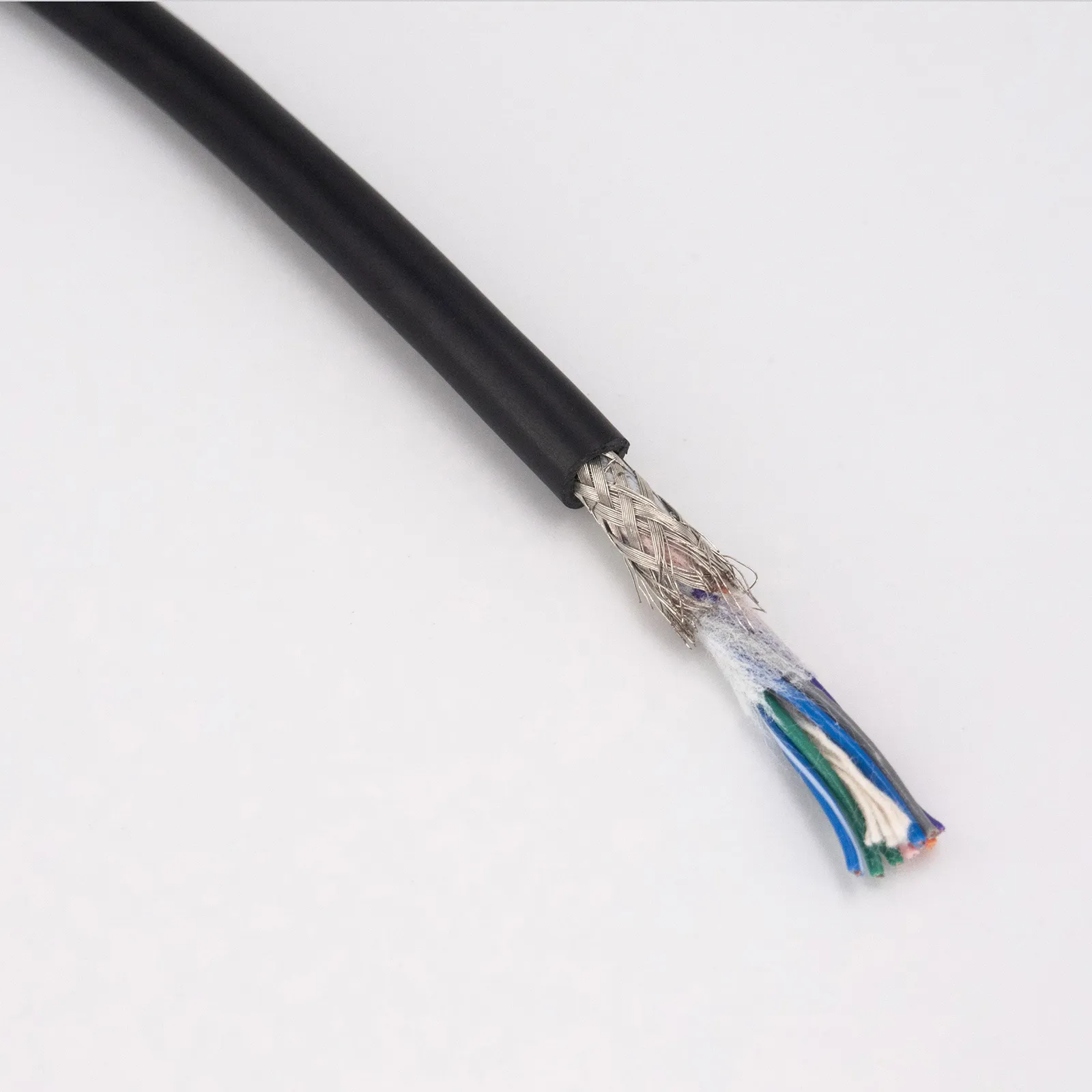

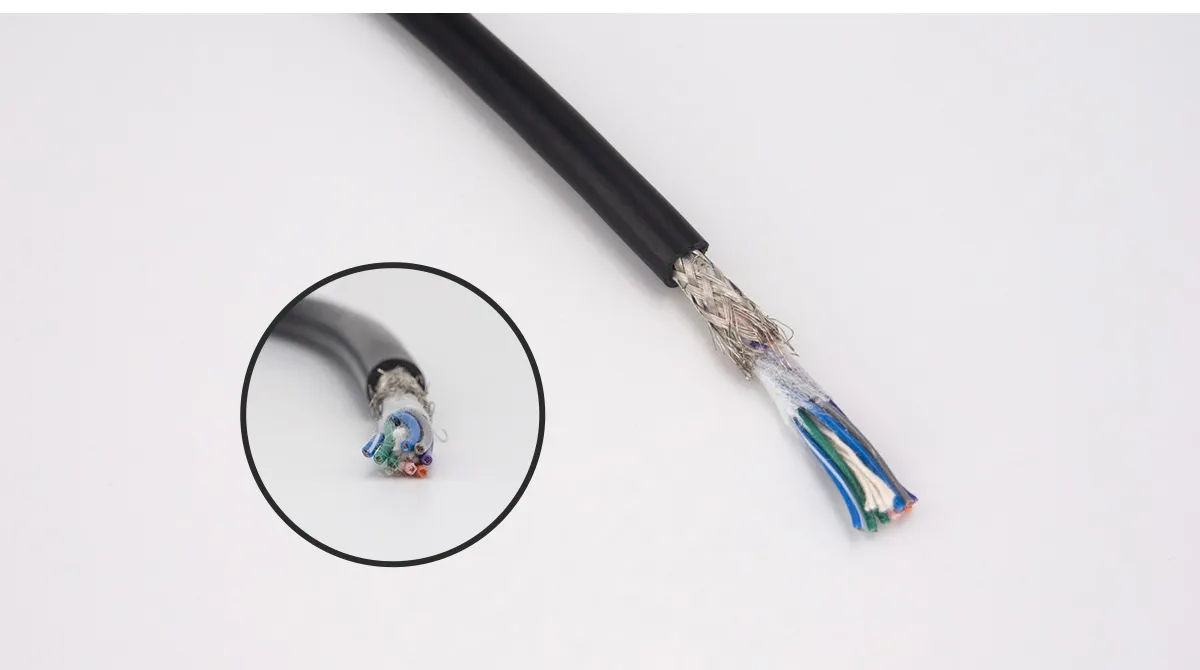

The 28AWG conductors with bare copper construction ensure excellent conductivity while maintaining flexibility. The cable features a comprehensive shielding system with both AL/PET foil and braided shield to protect against electromagnetic interference in noisy industrial environments. The PVC jacket offers excellent durability while still allowing for a tight bend radius.

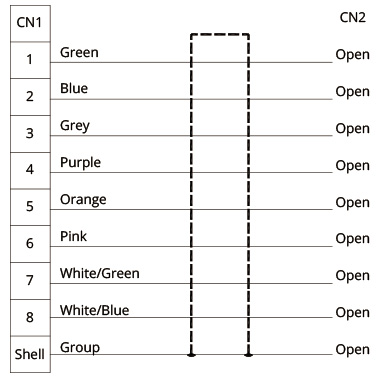

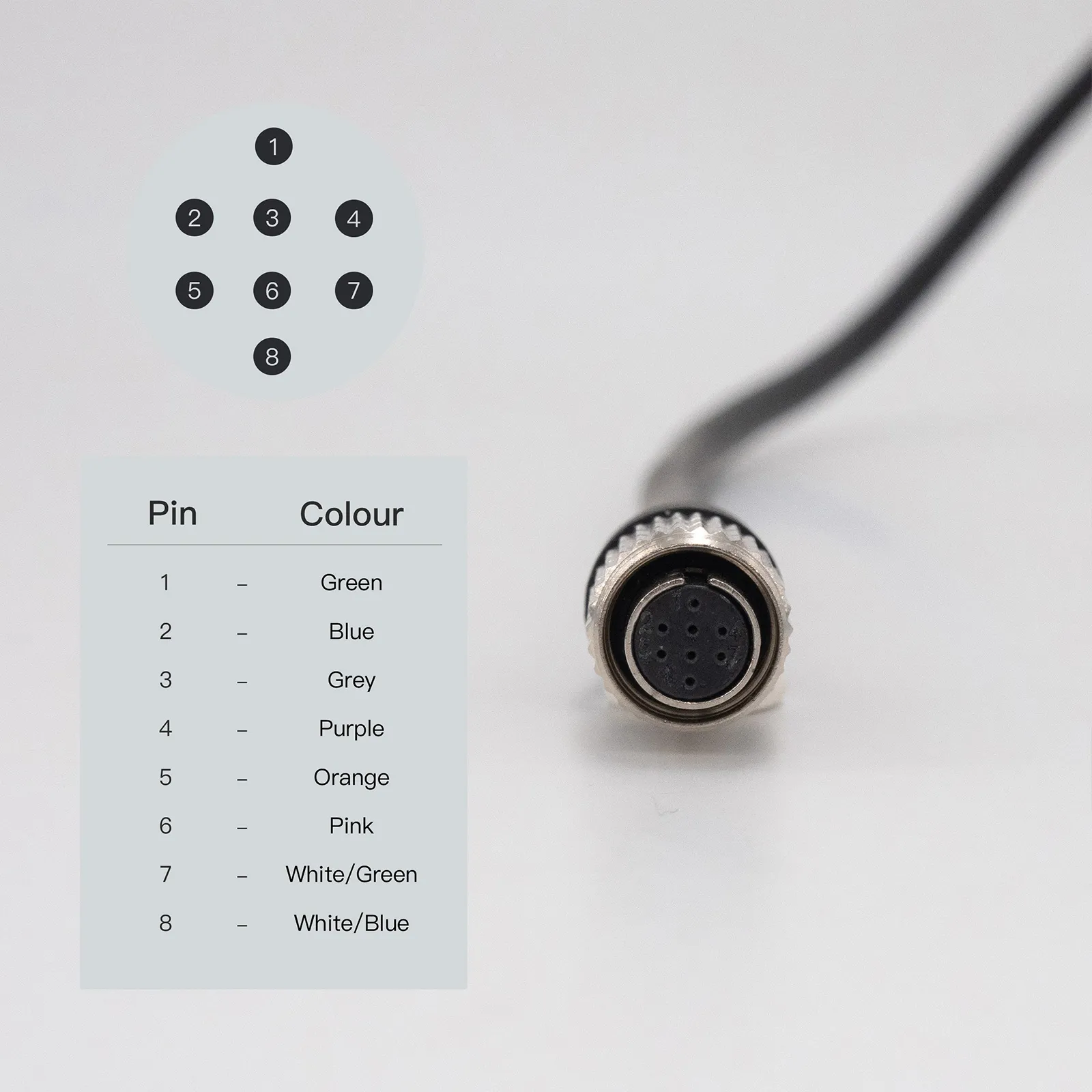

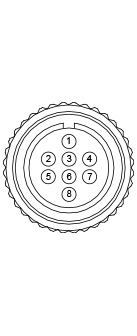

| Bill Of Materials | Wiring Diagram | Pins Location | |||||
| Item | Description | QTY | Specification |  |

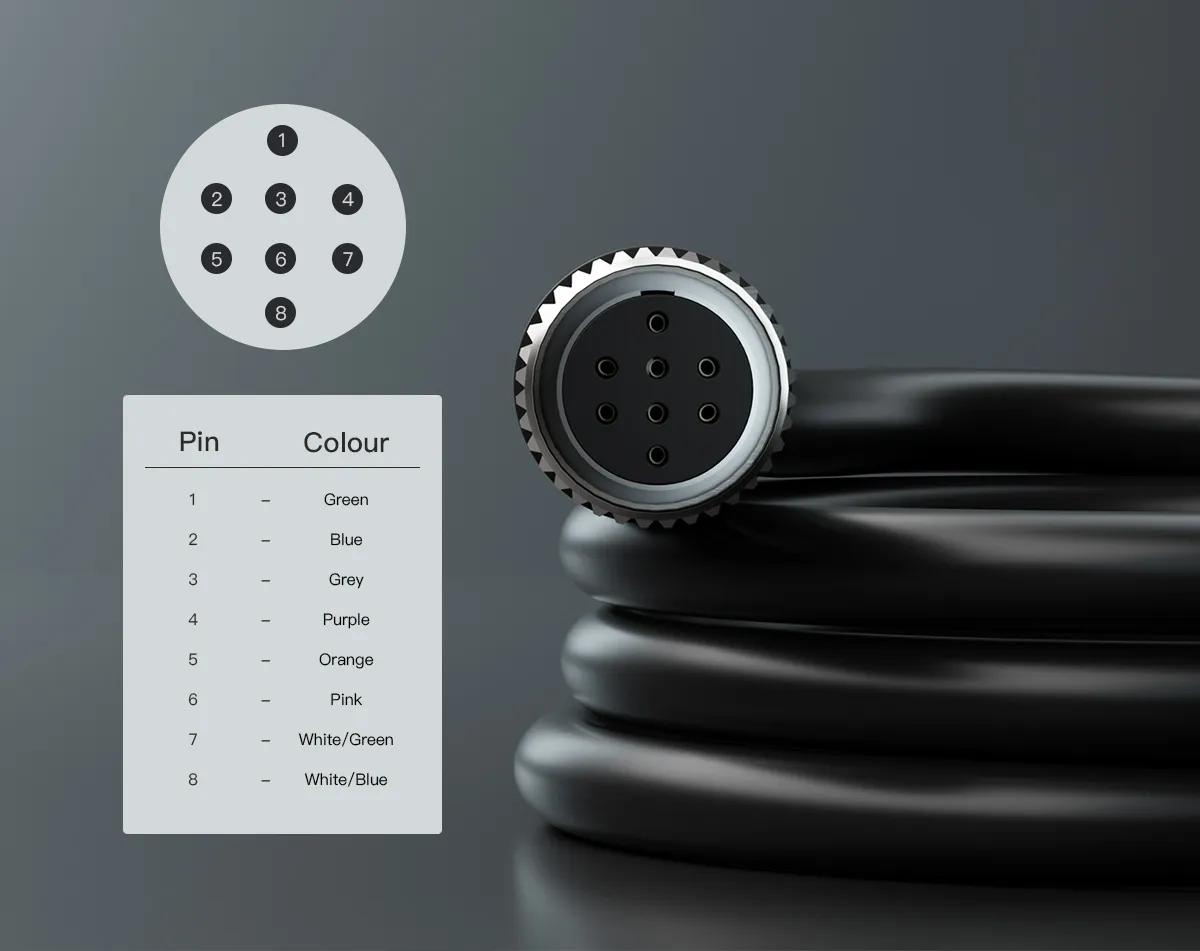

PIC | Pin | Clour |
 |
1 | Green | |||||
| ① | Wire | 1 | 6P x 26AWG RoHS LF BLACK | 2 | Blue | ||
| ② | Connector | 1 | HR25-7TP-8S | 3 | Grey | ||
| ③ | Shrinkable Tube | 1 | ø6.0 | 4 | Purple | ||
| ④ | Shrinkable Tube | 1 | ø2.0 | 5 | Orange | ||
| 6 | Pink | ||||||
| ⑤ | Label | 1 | Wiring Diagram | 7 | White/Green | ||
| 8 | White/Blue | ||||||

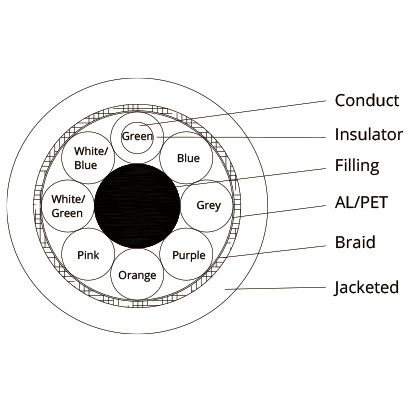

| Drawing | Pair Twist Insulator Colour | |
 |
Pair Twist | Insulator Colour |
| 1 | Green | |
| 2 | Blue | |
| 3 | Grey | |
| 4 | Purple | |
| 5 | Orange | |
| 6 | Pink | |
| 7 | White/Green | |
| 8 | White/Blue | |
| * White / Blue: White line is injected on the blue insulator and occupys 20-25% of the dimension. The same for others. | ||
Engineered specifically for industrial vision applications where cables experience constant bending and flexing. The special high-flex construction maintains signal integrity even in drag chains, robotic arms, and other moving assemblies. The reinforced jacketing and braided shield protect against environmental wear while ensuring reliable data transmission.

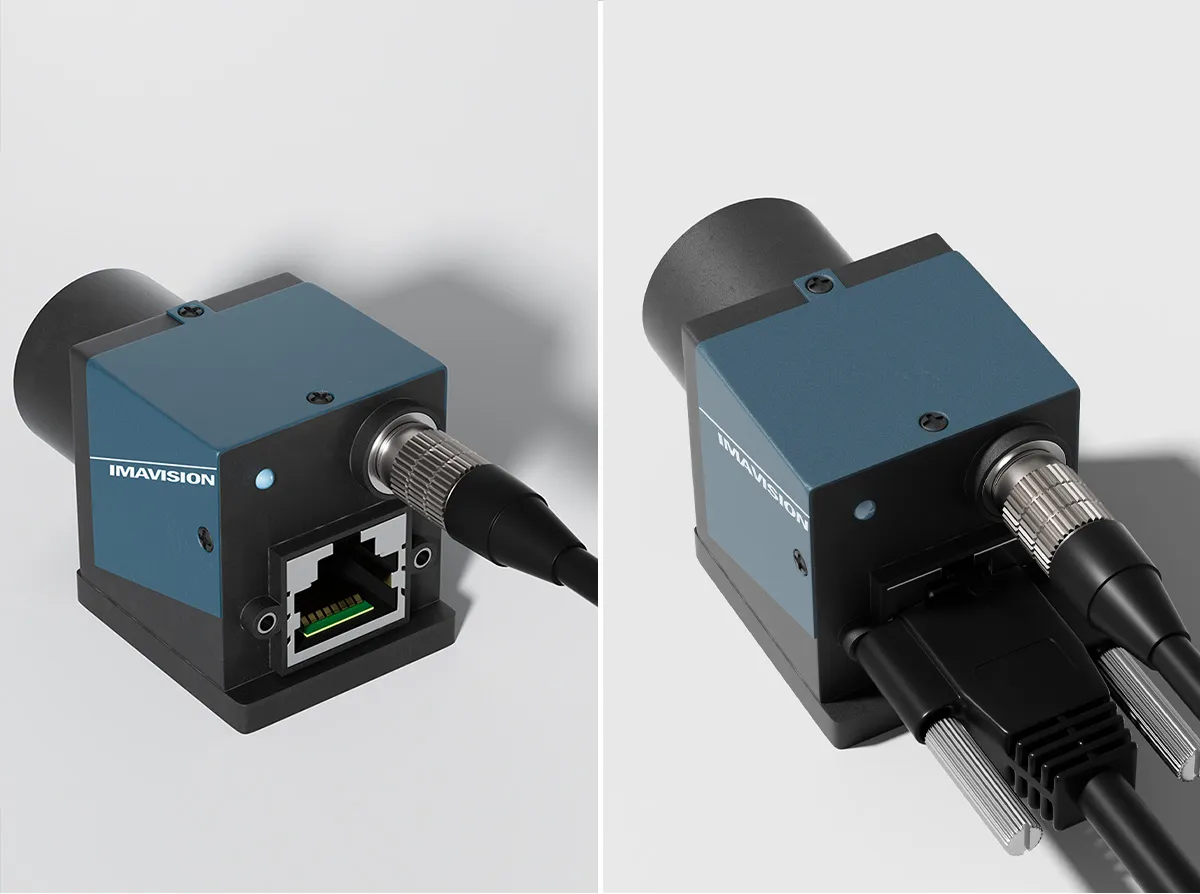

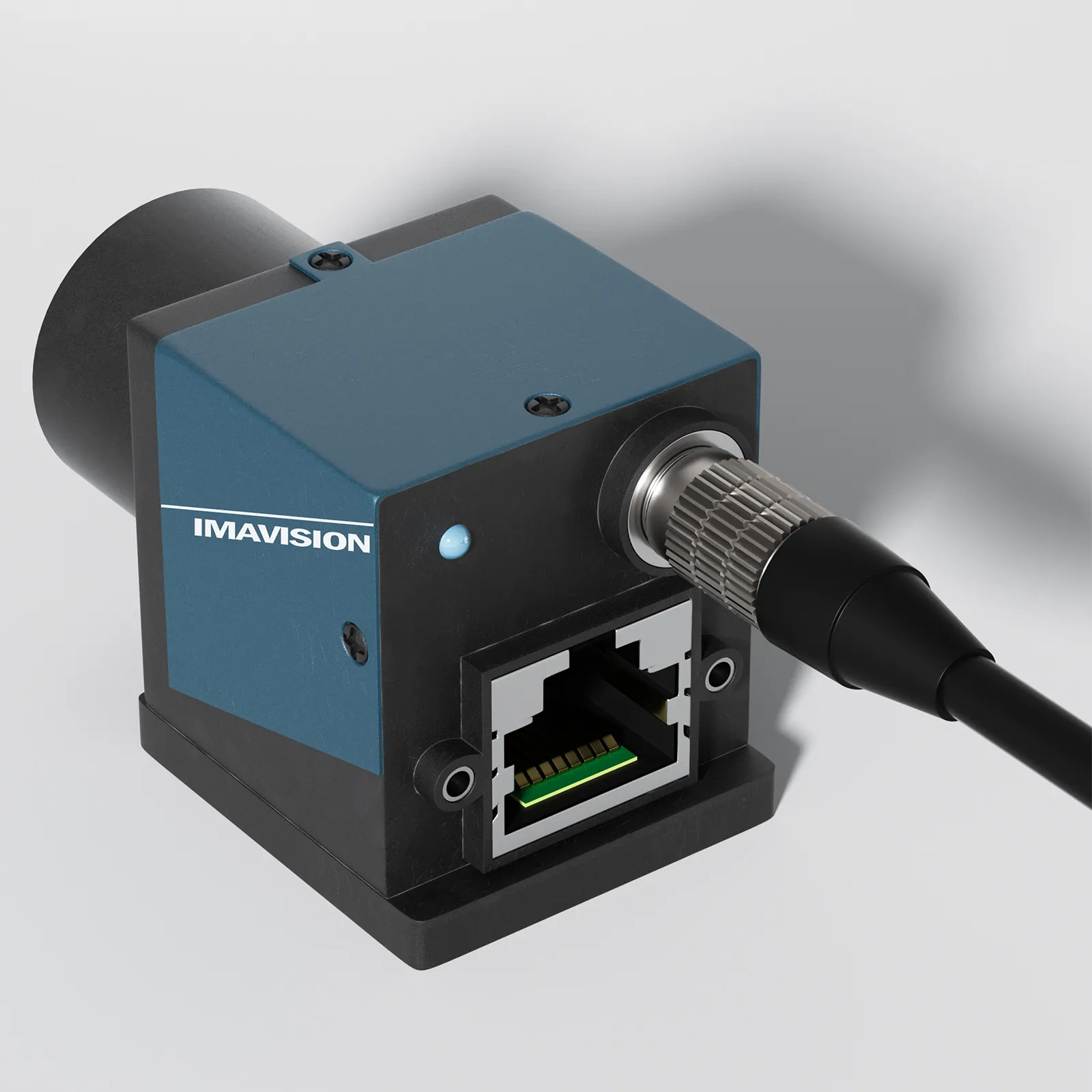

This cable is designed to work seamlessly with major industrial camera manufacturers using the Hirose HR25 connector standard, including:
Each conductor features distinct color-coding that matches standard industrial camera I/O pin functions:

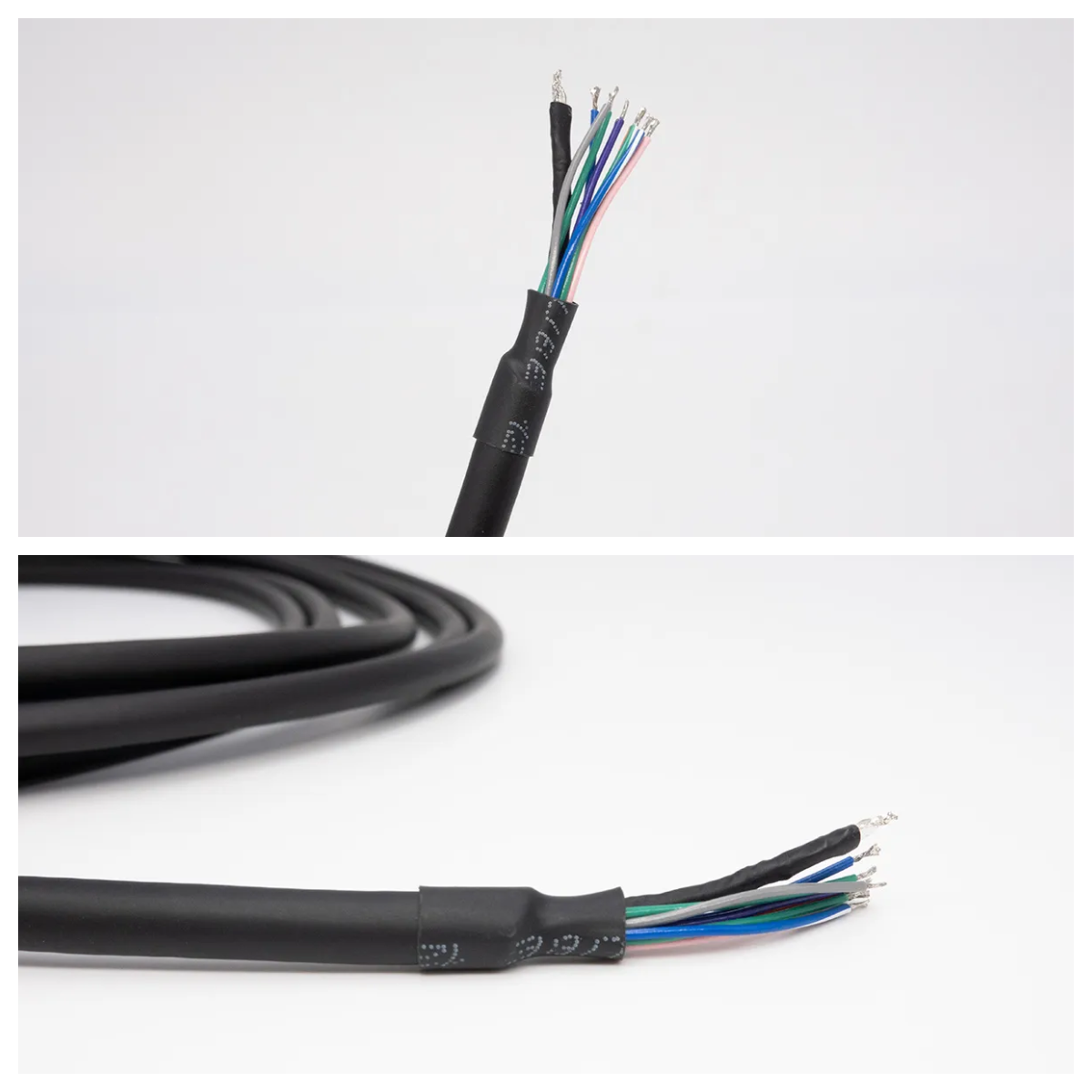

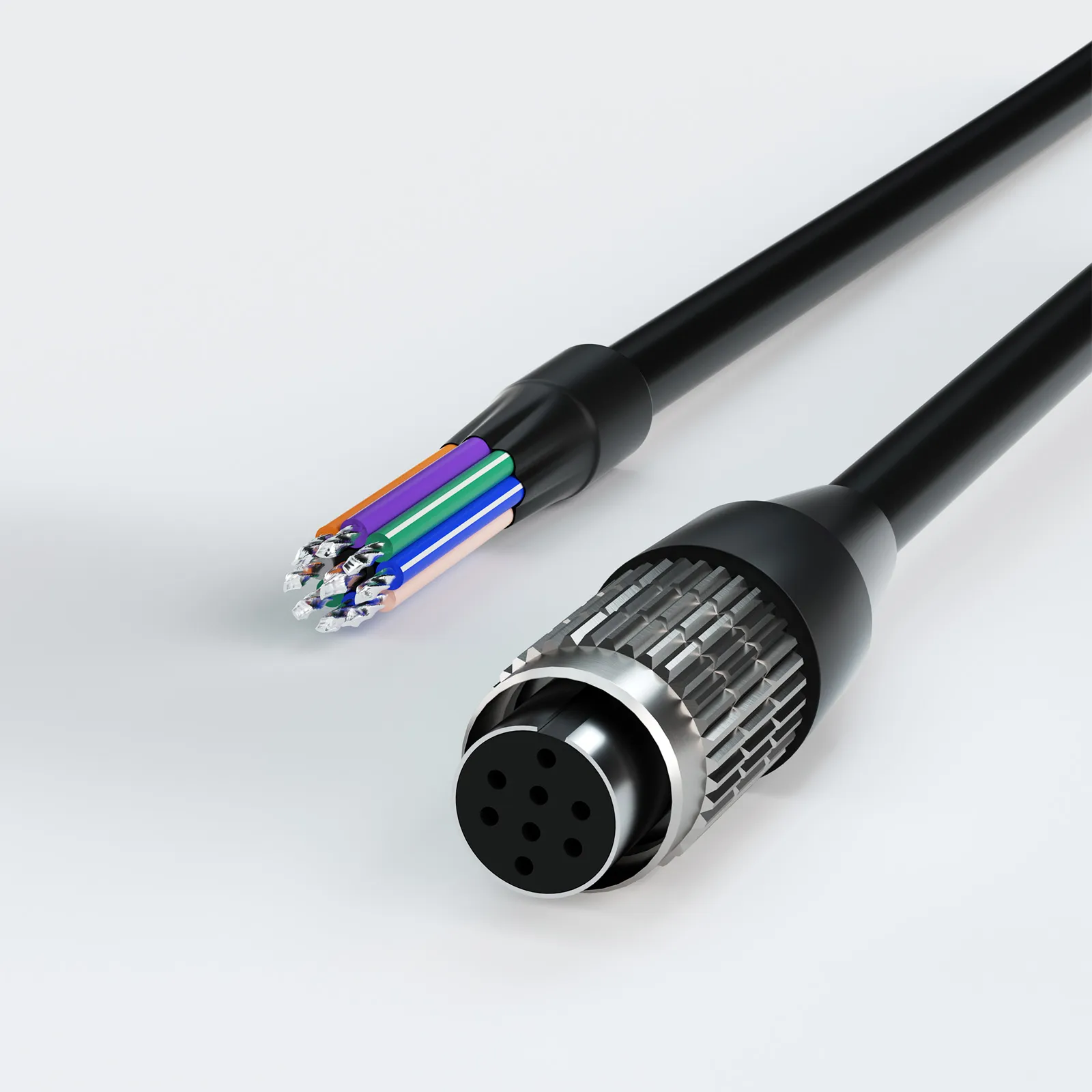

The open wire end allows for custom termination to suit your specific system requirements.
This cable offers exceptional resistance to:
